TZ500N14KOF Infineon - Thyristor Module

Discontinued: Infineon recommended replacement: TZ500N16KOF. We supply both the original TZ500N14KOF and the replacement - check the datasheets before switching.

Category: Thyristor & SCR Modules

Specifications: 1400(V) / 500(A)

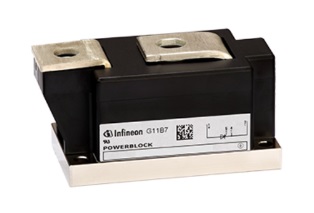

TZ500N14KOF Infineon Thyristor Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

TZ500N14KOF Description

Infineon Technologies TZ500N14KOF is a thyristor module rated at 1400 V and 500 A. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the TZ500N14KOF, and please confirm ratings against the datasheet before ordering.

Summary of Features

50 mm PowerBLOCK Single Thyristor Modules for Phase Control are designed and assembled with high reliable pressure contact technology using an isolated copper base plate. Pressure contact technology for high reliability, industrial standard package, electrically insulated baseplate, short on fail, highest robustness

Target Applications

Infineon TZ500N14KOF is used for motor drives, train traction, wind power, ups systems, Commercial, construction and agricultural vehicles (CAV).

Key Specifications

ManufacturerInfineon Technologies
CategoryThyristor Modules
Rated voltage1400 V
Rated current500 A
