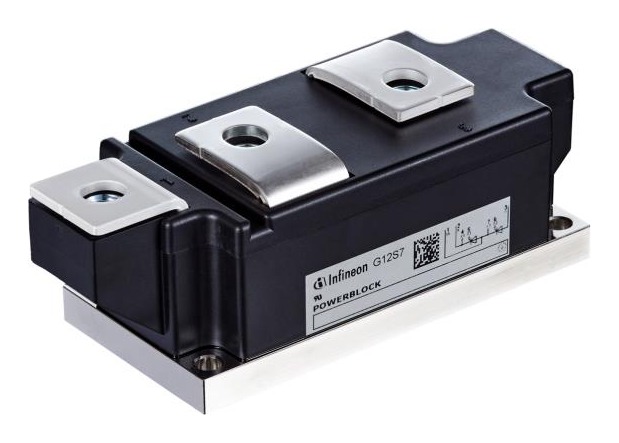

TT820N16KOF_TIM Infineon - Thyristor / Diode Module

TT820N16KOF_TIM Description

TT820N16KOF_TIM is a 1600 V, 820 A Infineon thyristor module (dual thyristor), used for soft starters, rectifiers for drives, crowbars.

USComponent supplies TT820N16KOF_TIM and other Infineon / Eupec power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon TT820N16KOF_TIM is used for soft starter, rectifier for drives applications, crowbar applications, power controllers, rectifiers for UPS, battery chargers, static switches and bypass switches.

Key Specifications

TT820N16KOF_TIM is a 1,600 V, 820 A Infineon thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Configuration	Dual thyristor
Repetitive peak voltage (VDRM / VRRM)	1,600 V
Average on-state current (ITAVM, TC 85 °C)	820 A
Technology	Phase control thyristors, Advanced Medium Power Technology (AMPT)
Package	PowerBLOCK, 60 mm
