TT570N16 Infineon - DUAL-SCR

Category: Thyristor & SCR Modules

Specifications: 1600V, 570A

TT570N16, Eupec Infineon power module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

TT570N16 Description

The Infineon Technologies (formerly Eupec) TT570N16 is a thyristor module, rated for 1600 V. Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the TT570N16, and please confirm ratings against the datasheet before ordering.

Target Applications

Infineon TT570N16 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

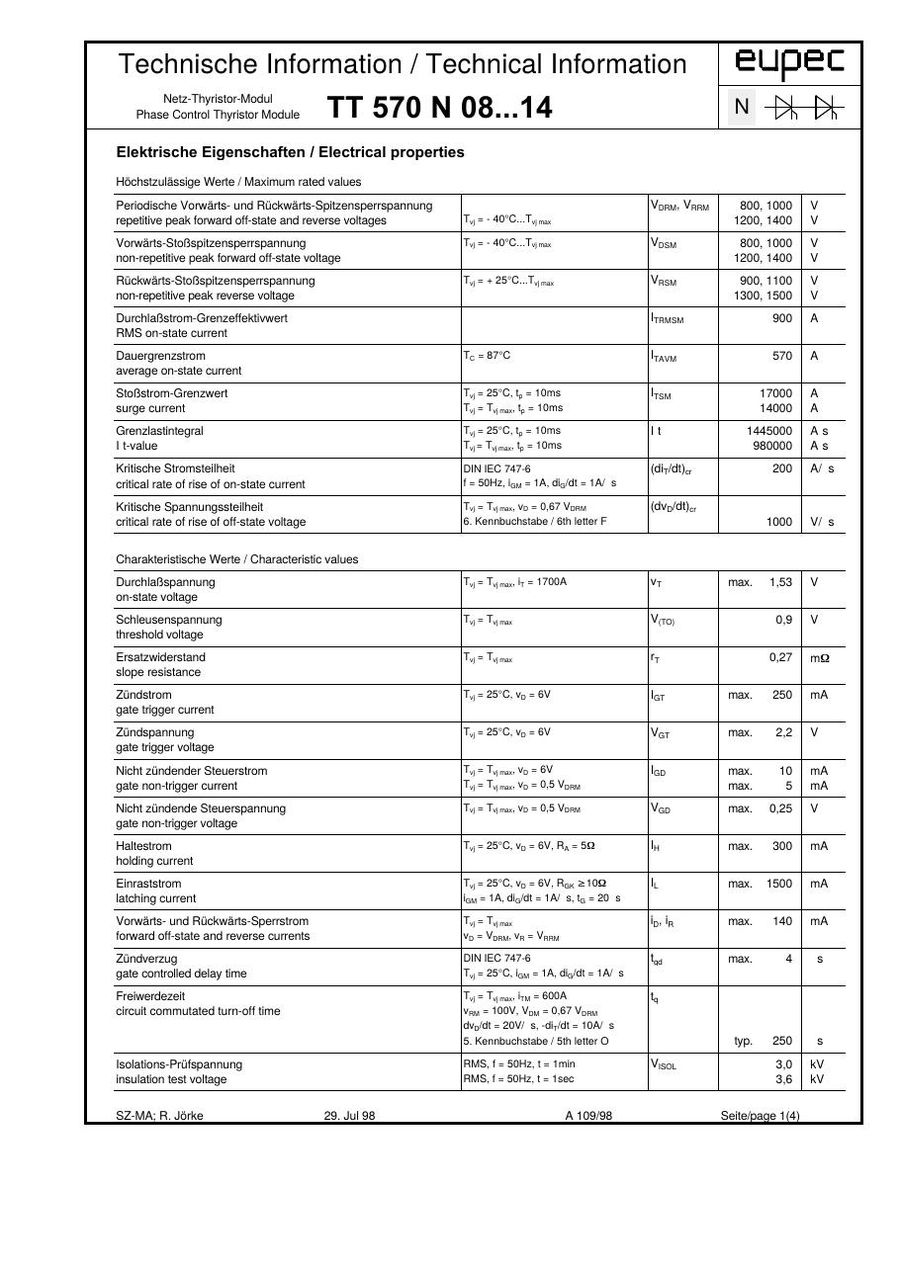

TT570N16 is an eupec (Infineon) PowerBLOCK thyristor module (thyristor/thyristor). Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK thyristor module (thyristor/thyristor)
Repetitive peak off-state / reverse voltage (VDRM / VRRM)1600 V (series 1200 to 1600 V)
Average on-state current (ITAVM), 180° el sin570 A at Tc = 87 °C
RMS current (ITRMSM)900 A
Surge current (ITSM), 10 ms, Tvj max14000 A
I²t, 10 ms, Tvj max980 × 10³ A²s
Threshold voltage V(T0)0.90 V
Slope resistance rT0.27 mΩ
Critical rate of rise of on-state current (di/dt)cr200 A/µs
Turn-off time tq, typ.250 µs
Critical rate of rise of off-state voltage (dv/dt)cr1000 V/µs
Thermal resistance RthJC0.065 °C/W
Thermal resistance RthCK0.02 °C/W
Max. junction temperature Tvj max135 °C
Package (outline)TP60
