TT570N20 Infineon - DUAL-SCR

TT570N20 Description

Infineon Technologies (formerly Eupec) TT570N20 is a thyristor module rated at 2000 V and 570 A. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the TT570N20, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Infineon TT570N20 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

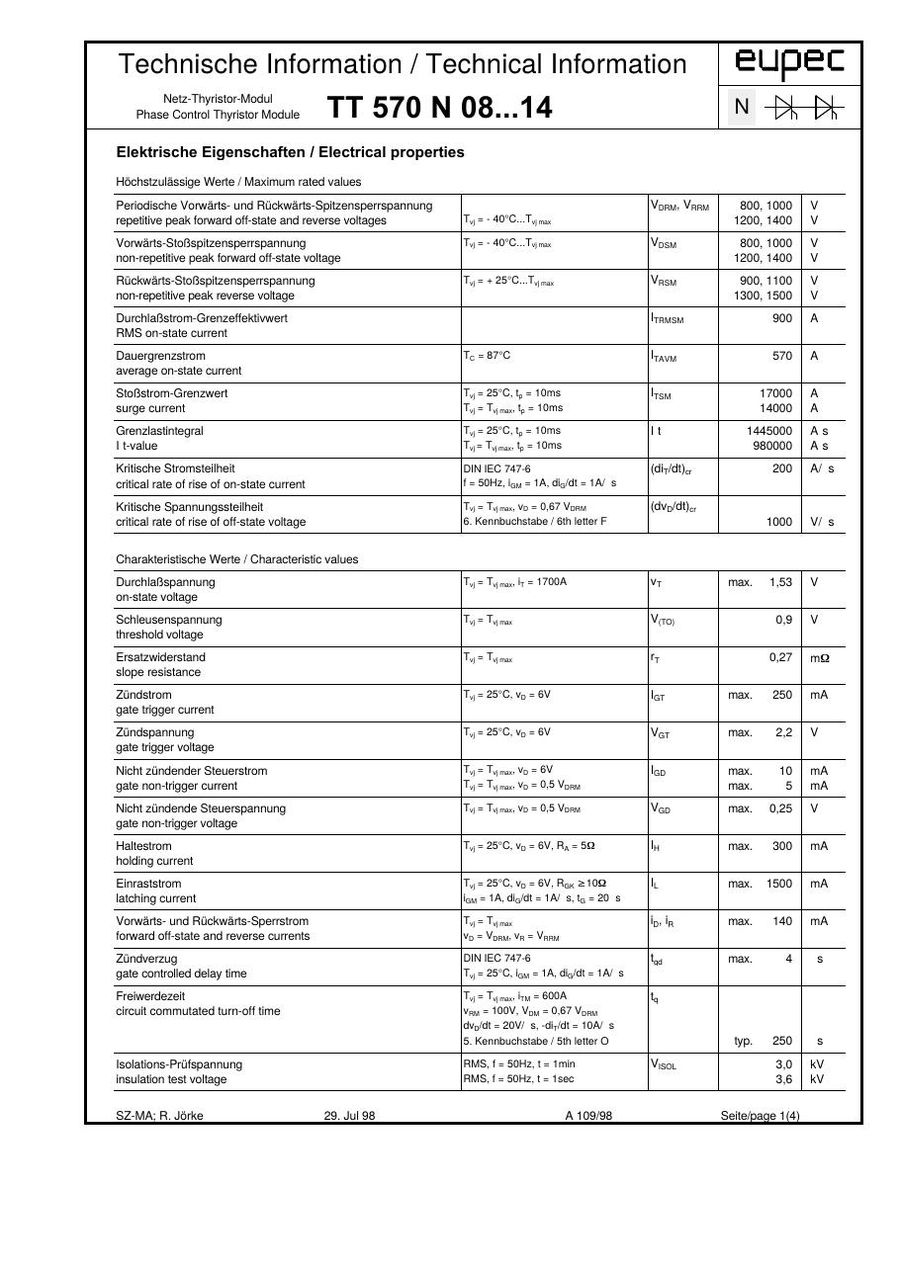

TT570N20 is an eupec (Infineon) PowerBLOCK thyristor module (thyristor/thyristor). Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

Parameter	Value
Manufacturer	eupec (Infineon Technologies)
Product type	PowerBLOCK thyristor module (thyristor/thyristor)
Repetitive peak off-state / reverse voltage (VDRM / VRRM), series range	1200 to 1600 V
Average on-state current (ITAVM), 180° el sin	570 A at Tc = 87 °C
RMS current (ITRMSM)	900 A
Surge current (ITSM), 10 ms, Tvj max	14000 A
I²t, 10 ms, Tvj max	980 × 10³ A²s
Threshold voltage V(T0)	0.90 V
Slope resistance rT	0.27 mΩ
Critical rate of rise of on-state current (di/dt)cr	200 A/µs
Turn-off time tq, typ.	250 µs
Critical rate of rise of off-state voltage (dv/dt)cr	1000 V/µs
Thermal resistance RthJC	0.065 °C/W
Thermal resistance RthCK	0.02 °C/W
Max. junction temperature Tvj max	135 °C
Package (outline)	TP60

Technical document (PDF)  |  Request a quote for TT570N20 (reply within 24 hours)
