TT570N18 Infineon - DUAL-SCR

Category: Thyristor & SCR Modules

Specifications: 1800V, 570A

TT570N18, Eupec Infineon power module

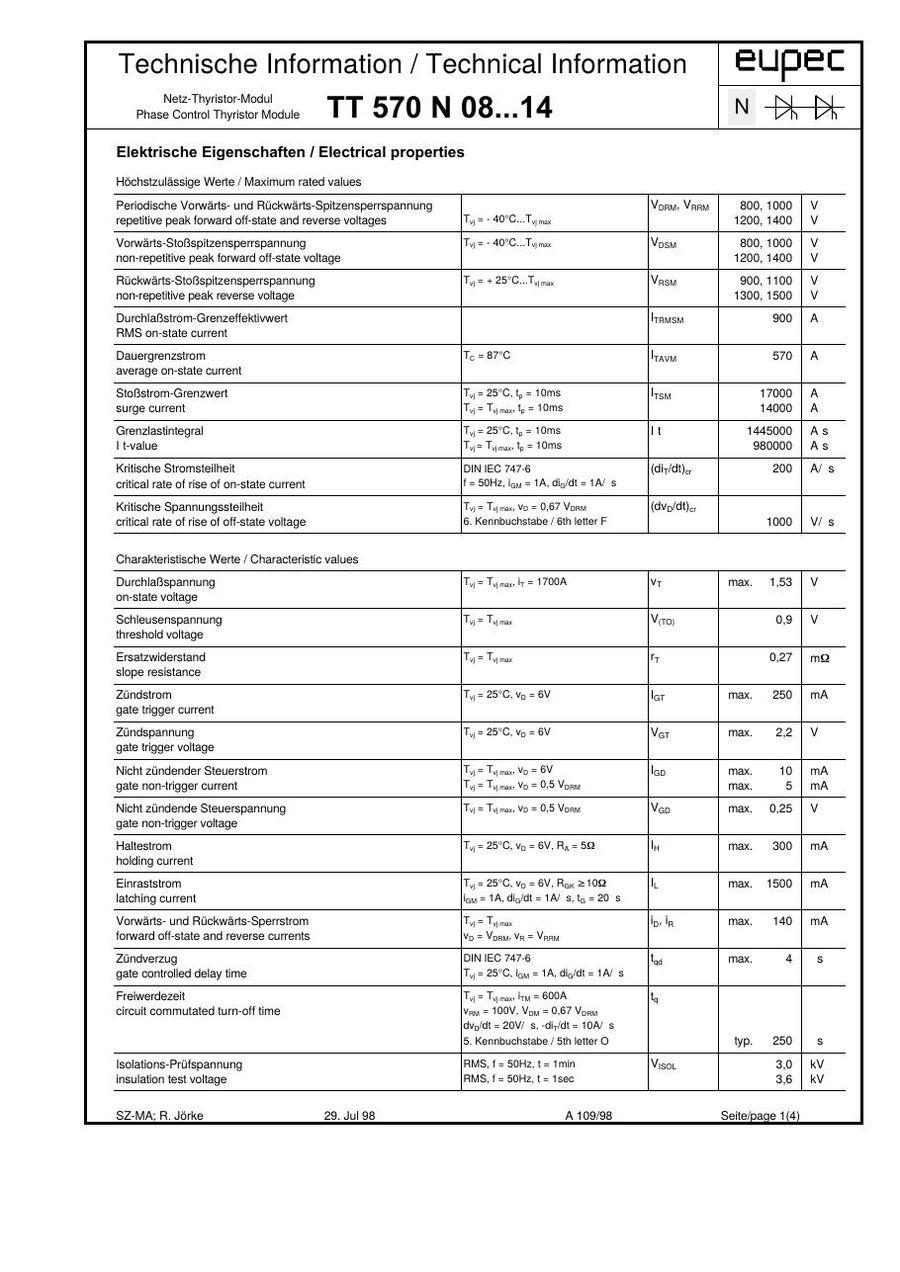

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

TT570N18 Description

The TT570N18 from Infineon Technologies (formerly Eupec) is a thyristor module with a 570 A rating. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

Looking for a replacement TT570N18? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Target Applications

Infineon TT570N18 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TT570N18 is an eupec (Infineon) PowerBLOCK thyristor module (thyristor/thyristor). Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK thyristor module (thyristor/thyristor)
Repetitive peak off-state / reverse voltage (VDRM / VRRM), series range1200 to 1600 V
Average on-state current (ITAVM), 180° el sin570 A at Tc = 87 °C
RMS current (ITRMSM)900 A
Surge current (ITSM), 10 ms, Tvj max14000 A
I²t, 10 ms, Tvj max980 × 10³ A²s
Threshold voltage V(T0)0.90 V
Slope resistance rT0.27 mΩ
Critical rate of rise of on-state current (di/dt)cr200 A/µs
Turn-off time tq, typ.250 µs
Critical rate of rise of off-state voltage (dv/dt)cr1000 V/µs
Thermal resistance RthJC0.065 °C/W
Thermal resistance RthCK0.02 °C/W
Max. junction temperature Tvj max135 °C
Package (outline)TP60

Technical document (PDF)  |  Request a quote for TT570N18 (reply within 24 hours)
