FZ500R65KE3 Infineon - IGBT

FZ500R65KE3 Description

Infineon Technologies makes the FZ500R65KE3, a 6500 V, 500 A IGBT module. The module contains a single switch with its freewheeling diode (1-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Looking for a replacement FZ500R65KE3? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Infineon FZ500R65KE3 is used for Medium Voltage Converters and Traction Drives.

Key Specifications

FZ500R65KE3 is a 6,500 V, 500 A IGBT module, single switch configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single switch
Collector-emitter voltage (VCES)	6,500 V
Collector current (IC)	500 A
Datasheet	Available on this page (PDF)

FZ500R65KE3 Video

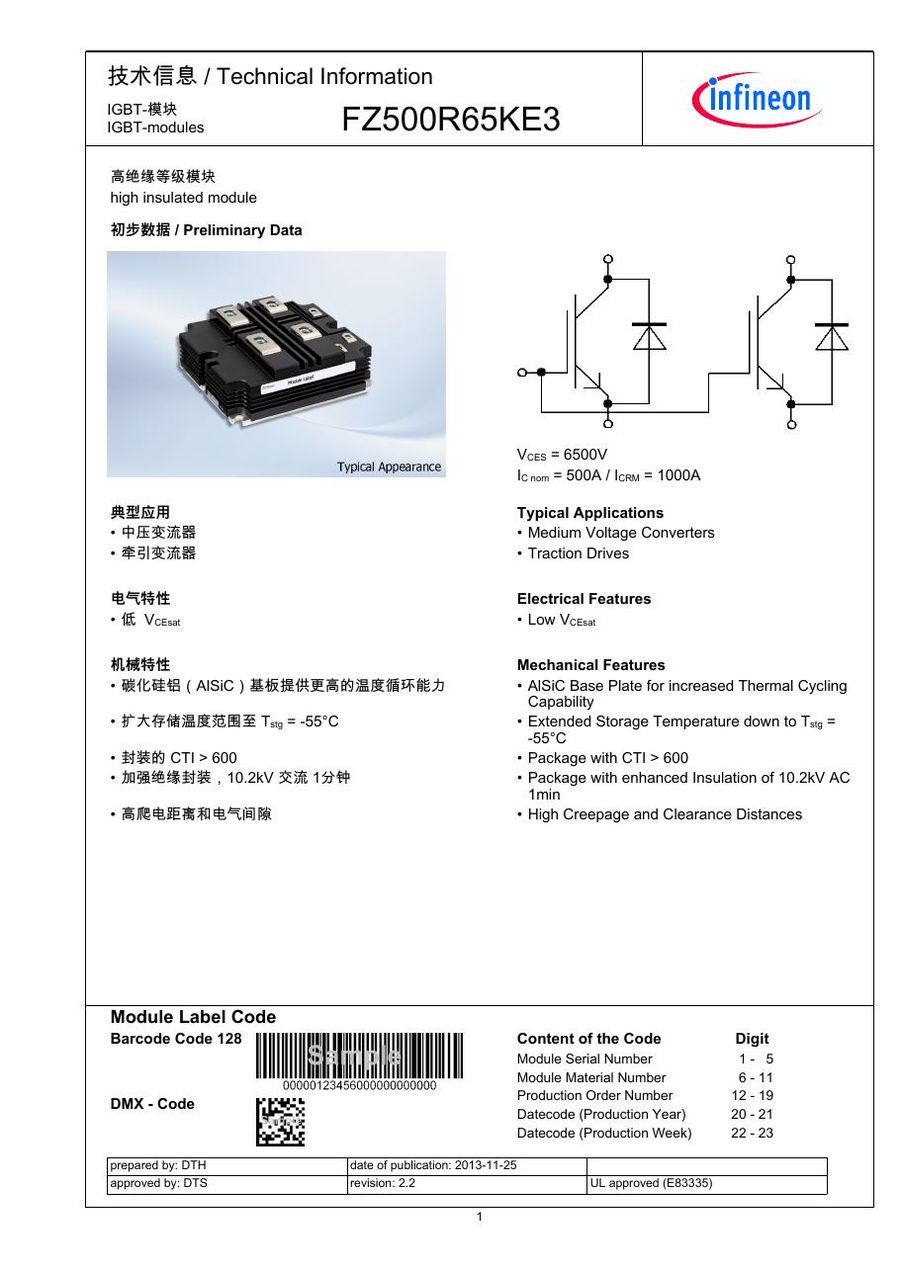

Technical document (PDF)  |  Request a quote for FZ500R65KE3 (reply within 24 hours)
