FS450R12KE3-S1 Infineon - IGBT Module

FS450R12KE3-S1 Description

The FS450R12KE3-S1 from Infineon Technologies is an IGBT module with a 1200 V / 450 A rating. The module contains six switches arranged as a three-phase bridge (6-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

We help engineers and repair technicians find parts like the FS450R12KE3-S1, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

FS450R12KE3-S1 is a 1200V 450A IGBT Module.

Target Applications

Infineon FS450R12KE3-S1 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (formerly Eupec)
Configuration	Six-pack / three-phase bridge (6-in-1)
Technology	IGBT3 (Trench/Fieldstop)
VCES	1200 V
IC nom	450 A
Similar-rating parts	6MBI450U-120, 6MBI450U4-120, FS450R12KE3, FS450R12KE4 (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)

Note: the S1 version is the same module as the standard FS450R12KE3, tested with a Siemens-specific grouping (Infineon). The datasheet on this page is the FS450R12KE3 datasheet.

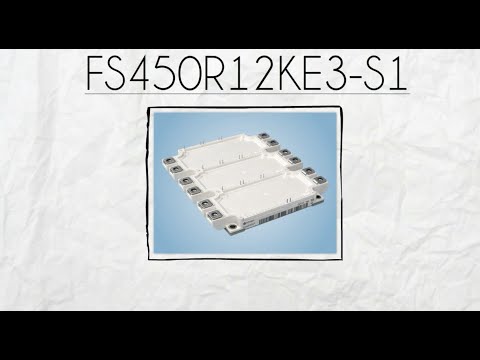

FS450R12KE3-S1 Video

Technical document (PDF)  |  Request a quote for FS450R12KE3-S1 (reply within 24 hours)
