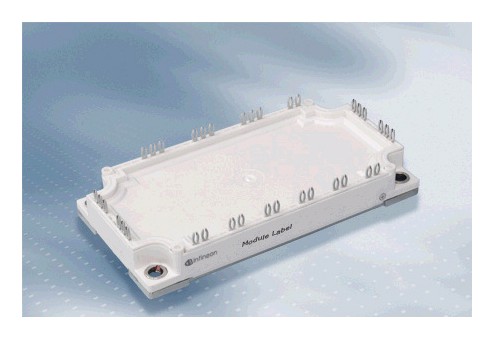

FS150R07N3E4_B11Infineon - IGBT

FS150R07N3E4_B11 Description

FS150R07N3E4_B11 is a 650 V, 150 A Infineon six-pack IGBT module (EconoPACK 3, IGBT4), used for motor drives.

USComponent supplies FS150R07N3E4_B11 and other Infineon power modules, including discontinued types. Download the datasheet or request a quote for pricing and availability.

Target Applications

Infineon FS150R07N3E4_B11 is used for motor drives.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	Six-pack (three-phase full bridge) with NTC
Package	EconoPACK 3, PressFIT contact technology
Technology	Trench/Fieldstop IGBT4, Emitter Controlled 3 diode
VCES	650 V
IC nom / ICRM	150 A / 300 A
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min
Mounting torque	M5: 3 - 6 Nm
Weight	300 g
