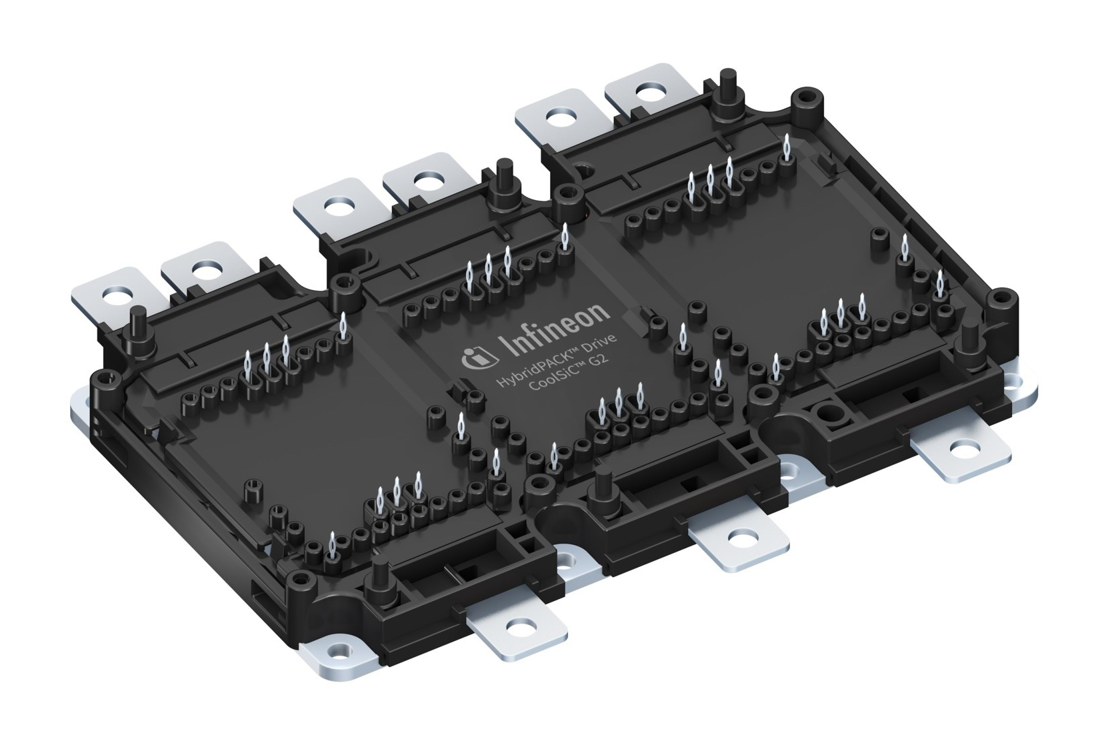

FS01M9R13A7MA2B Infineon - IGBT Module

FS01M9R13A7MA2B Description

FS01M9R13A7MA2B is a 1300 V / 390 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: automotive applications, (Hybrid) electrical vehicles (H)EV, Motor drives, Commercial, construction and agricultural vehicles (CAV).

USComponent supplies FS01M9R13A7MA2B and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS01M9R13A7MA2B is used for Automotive applications, (Hybrid) electrical vehicles (H)EV, Motor drives, Commercial, construction and agricultural vehicles (CAV).

Key Specifications

FS01M9R13A7MA2B is a 1300 V / 390 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (HybridPACK Drive package). Source: Infineon datasheet and product table.

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Configuration	Six-pack (3-phase bridge)
Drain-source voltage (VDSS)	1300 V
Nominal drain current (ID nom)	390 A
Package	HybridPACK Drive
Datasheet	Available on this page (PDF)
