FF75R12RT4 Infineon - IGBT Module

FF75R12RT4 Description

Infineon Technologies makes the FF75R12RT4, a 1200 V, 75 A IGBT module. It is built with two switches in a half-bridge (2-in-1) arrangement. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

Need the FF75R12RT4? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Infineon FF75R12RT4 is used for High-power converters, motor drives, UPS systems.

Key Specifications

FF75R12RT4 is a 1,200 V, 75 A IGBT module, dual (half bridge) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	75 A

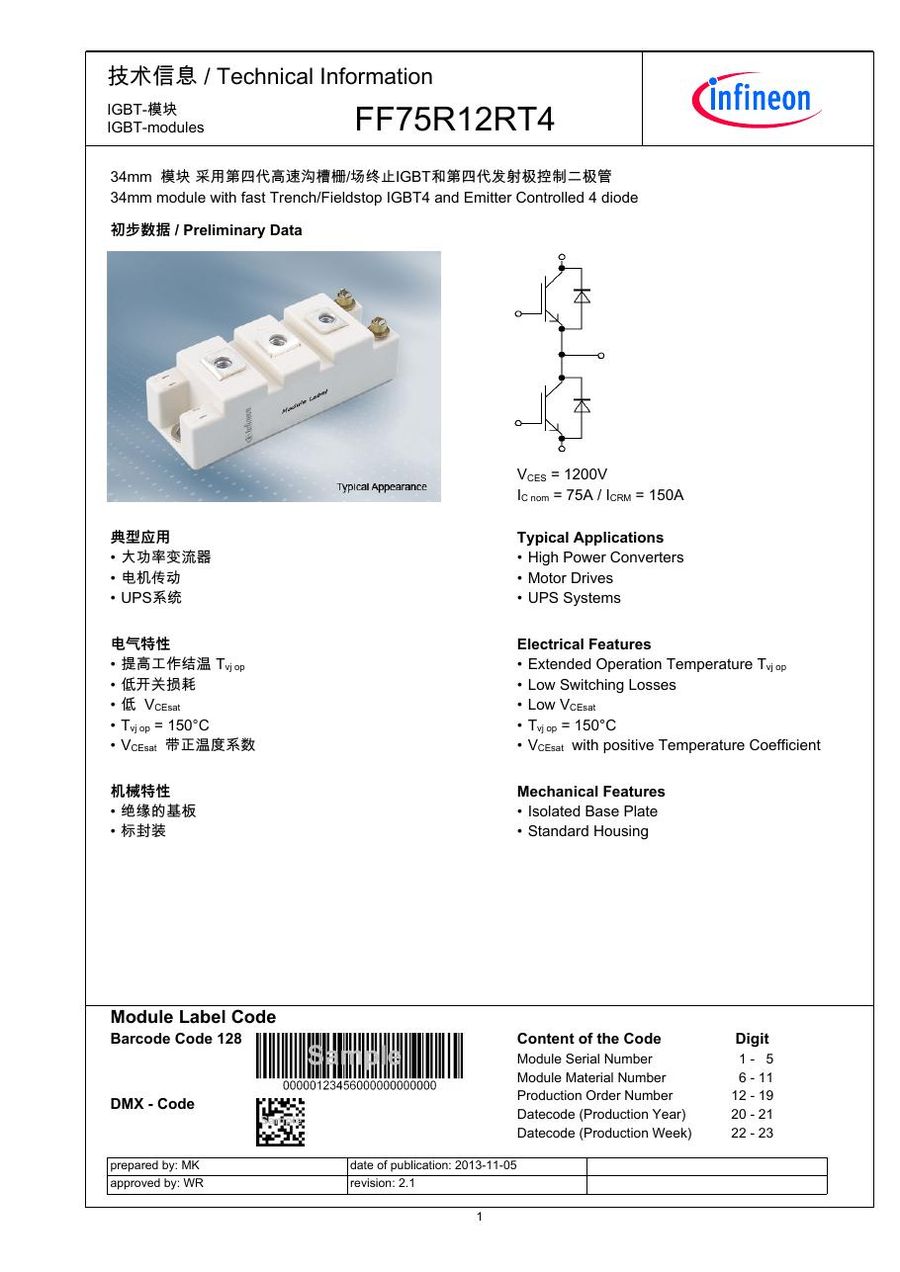

Datasheet	Available on this page (PDF)

Replacement for discontinued parts: Infineon recommends FF75R12RT4 as the replacement for BSM75GB120DLC, BSM75GB120DN2 (Product Discontinuation PD_051_21). Check the datasheet limits and gate drive conditions when replacing.

Technical document (PDF)  |  Request a quote for FF75R12RT4 (reply within 24 hours)
