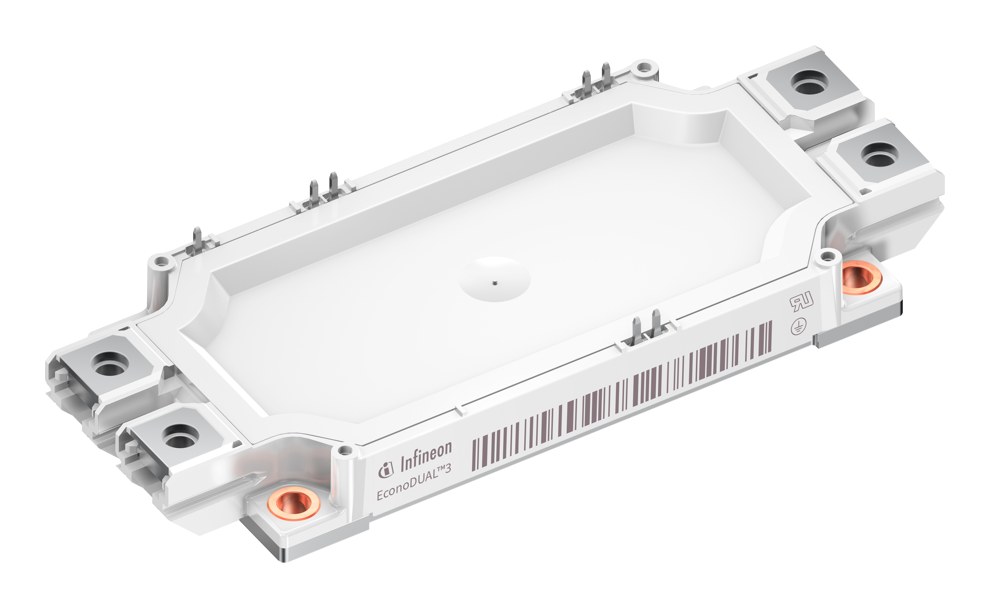

FF450R12ME7 Infineon - IGBT Module

FF450R12ME7 Description

FF450R12ME7 is a 1200 V, 450 A Infineon EconoDUAL 3 dual IGBT module (IGBT7), used for motor drives, servo drives and UPS systems.

USComponent supplies FF450R12ME7 and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF450R12ME7 is used for commercial agriculture vehicles, high-power converters, motor drives, servo drives and UPS systems.

Key Specifications

FF450R12ME7 is a 1,200 V, 450 A Infineon EconoDUAL 3 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	450 A
Technology	TRENCHSTOP IGBT7 with Emitter Controlled 7 diode
Package	EconoDUAL 3
Max. operating junction temperature	150 °C

Technical document (PDF)  |  Request a quote for FF450R12ME7 (reply within 24 hours)
