FF150R12YT3Infineon - IGBT Module

FF150R12YT3 Description

Infineon Technologies FF150R12YT3 is an IGBT module rated at 1200 V and 150 A. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FF150R12YT3.

Summary of Features

Target Applications

Infineon FF150R12YT3 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FF150R12YT3 is a 1,200 V, 150 A IGBT module, dual (half bridge) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

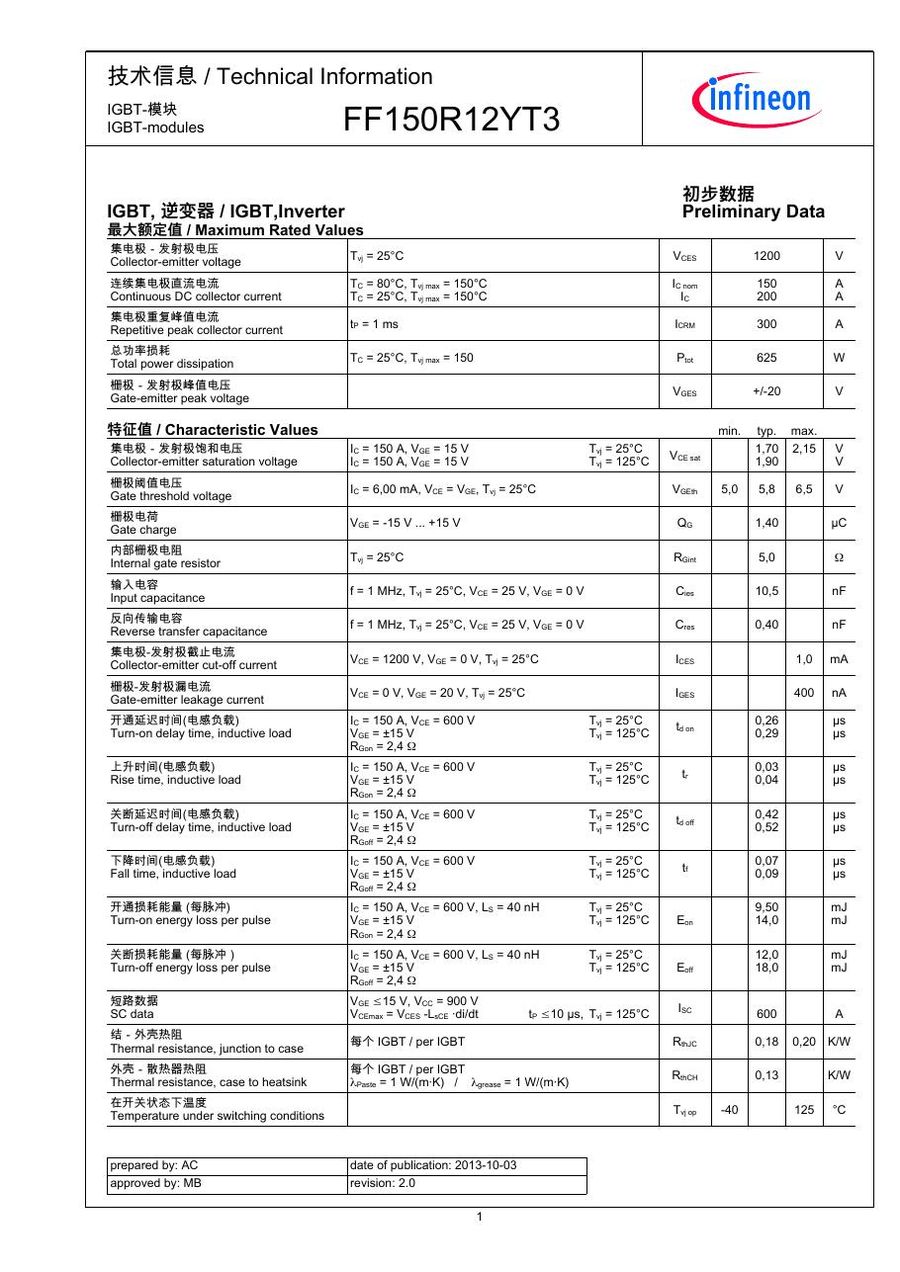

Download FF150R12YT3 Datasheet

FF150R12YT3 PDF Datasheet
