FF150R12W1T7E_B11 Infineon - IGBT Module

Also written as: FF150R12W1T7E-B11

Category: IGBT Modules

Specifications: 1200V, 150A

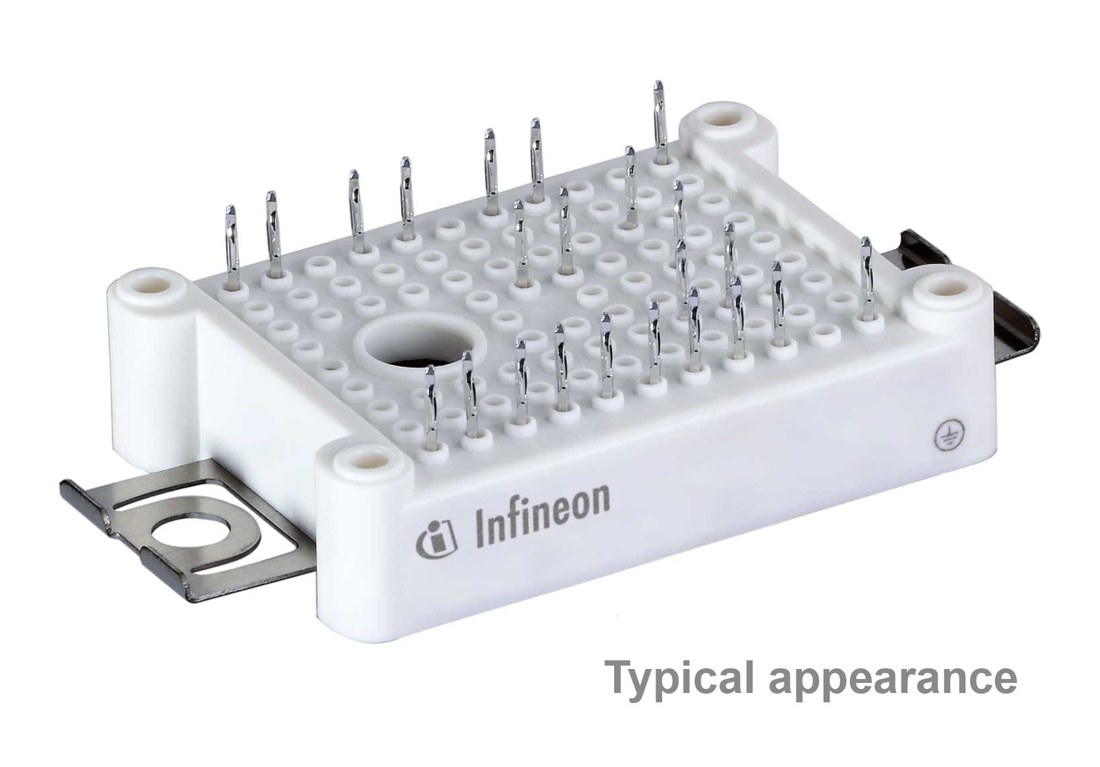

FF150R12W1T7E_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FF150R12W1T7E_B11 Description

FF150R12W1T7E_B11 is a 1200 V / 150 A dual (half-bridge) IGBT module from Infineon Technologies. Typical applications: motor drives, Air conditioning, Auxiliary inverters, Servo drives, UPS systems.

USComponent supplies FF150R12W1T7E_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Overload operation up to 175°C
  • TRENCHSTOP IGBT7
  • High power density
  • Compact design

Target Applications

Infineon FF150R12W1T7E_B11 is used for Motor drives, Air conditioning, Auxiliary inverters, Servo drives, UPS systems.

Key Specifications

FF150R12W1T7E_B11 is a 1200 V / 150 A dual (half-bridge) IGBT module from Infineon Technologies (EasyDUAL package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)150 A
PackageEasyDUAL
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FF150R12W1T7E_B11 (reply within 24 hours)
