FD200R12KE3P Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 200A

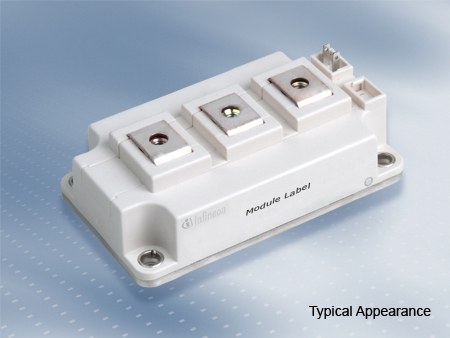

FD200R12KE3P Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FD200R12KE3P Description

FD200R12KE3P is a 1200 V / 200 A chopper (IGBT + diode) IGBT module from Infineon Technologies. Typical applications: chopper applications, DC/DC converter, Motor drives.

USComponent supplies FD200R12KE3P and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High short-circuit capability
  • High dynamic robustness
  • Unbeatable robustness
  • Trench IGBT 3
  • Vcesat with positive temperature coefficient
  • 2.5 kV AC 1min insulation
  • High creepage and clearance distances
  • Isolated base plate

Target Applications

Infineon FD200R12KE3P is used for Chopper applications, DC/DC converter, Motor drives.

Key Specifications

FD200R12KE3P is a 1200 V / 200 A chopper (IGBT + diode) IGBT module from Infineon Technologies (62mm package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationChopper (IGBT + diode)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)200 A
Package62mm
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FD200R12KE3P (reply within 24 hours)
