FB10R06KL4G Infineon - Power Transistor Module

Discontinued: Infineon recommended replacement: FP10R06W1E3. We supply both the original FB10R06KL4G and the replacement - check the datasheets before switching.

Specifications: 600V, 10A

FB10R06KL4G Infineon Power Transistor Module

Discontinued by the manufacturer - we source original new and surplus stock. Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FB10R06KL4G Description

The FB10R06KL4G from Infineon Technologies is an IGBT module. The module contains a chopper arrangement. Parts like this are found in industrial machinery, automation systems and control panels.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the FB10R06KL4G, and please confirm ratings against the datasheet before ordering.

Summary of Features

FB10R06KL4G is a 600 V, 10 A IGBT module, brake chopper configuration.

Target Applications

Infineon FB10R06KL4G is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

FB10R06KL4G is a 600 V, 10 A IGBT module, brake chopper configuration. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
ConfigurationBrake chopper
Collector-emitter voltage (VCES)600 V
Collector current (IC)10 A

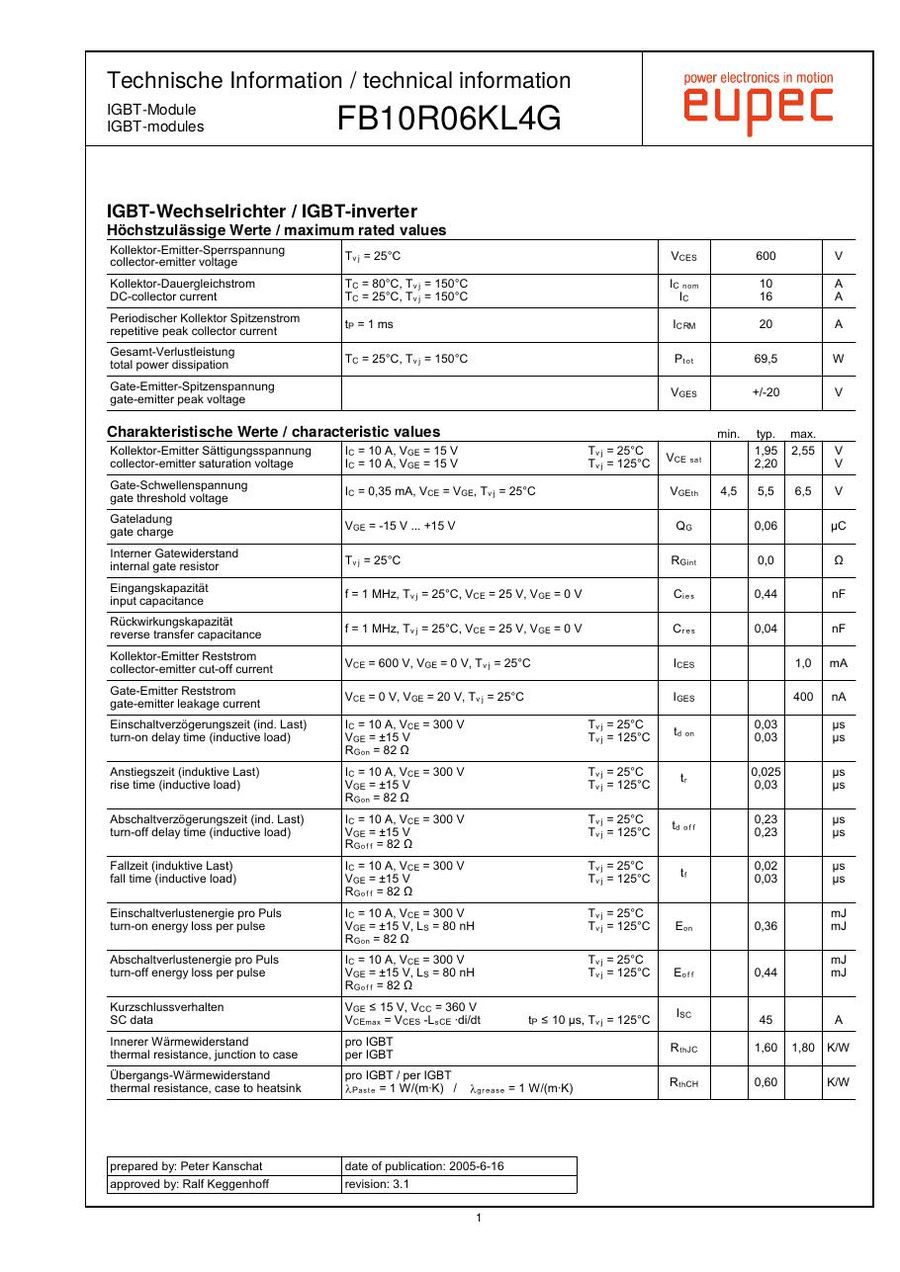

DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FB10R06KL4G (reply within 24 hours)

Related Part Numbers

FB10R06KL4
600V, 10A		FB10R06KL4G-B1
600(V) / 15(A)		FB15R06KL4_B1
600V, 15A		FB20R06KL4_B1
600V, 20A
FB20R06W1E3_B11
600V, 20A		FB20R06W1E3
600V, 20A		FB180SA10FB30R06W1E3
600V, 30A
FB50R07W2E3_B23
650V, 50A		FB50R07W2E3_C36
650V, 50A		FBA40AA50
500(V) / 40(A)		FBA50AA50
500(V) / 50(A)
FBA50BA45
450(V) / 50(A)		FBA50BA50
500V, 50A		FBA50CA45
450V, 50A		FBA50CA50
500(V) / 50(A)
