DDB6U205N16L Infineon - Fuse

DDB6U205N16L Description

Rated at 1600 V and 205 A, the Infineon Technologies DDB6U205N16L is a fuse. A bridge like this is usually found at the front end of inverters, drives and switch-mode power supplies.

Looking for a replacement DDB6U205N16L? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Infineon DDB6U205N16L is used for overcurrent and short-circuit protection of power semiconductors in rectifiers, AC and DC drives, inverters, UPS systems and other power electronic equipment.

Key Specifications

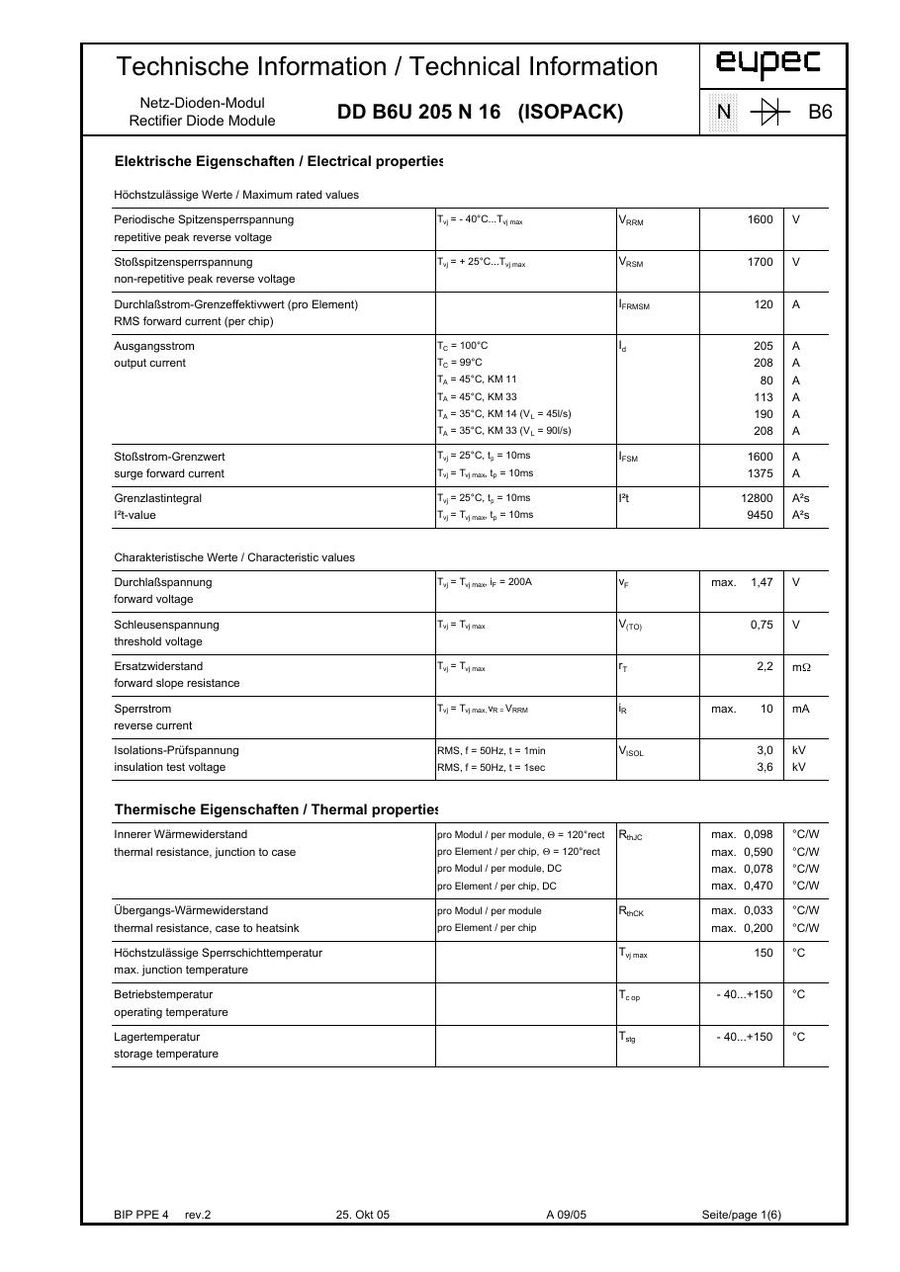

DDB6U205N16L is a 1600 V / 205 A bridge rectifier module from Infineon Technologies (eupec). Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Infineon Technologies (eupec)
Product type	Bridge rectifier module
Configuration	Three-phase bridge (B6U)
Repetitive peak reverse voltage (VRRM)	1600 V
Non-repetitive peak reverse voltage (VRSM)	1700 V
Output current (Id)	205 A (TC = 100 °C)
RMS forward current per chip (IFRMSM)	120 A
Surge forward current (IFSM)	1600 A (Tvj = 25 °C, tp = 10 ms); 1375 A (Tvj max, tp = 10 ms)
I²t value	12 800 A²s (Tvj = 25 °C, 10 ms); 9450 A²s (Tvj max, 10 ms)
Forward voltage (vF)	max. 1.47 V (Tvj max, iF = 200 A)
Insulation test voltage (VISOL)	3.0 kV (RMS, 50 Hz, 1 min); 3.6 kV (RMS, 50 Hz, 1 s)
Max junction temperature (Tvj max)	150 °C
Datasheet	Available on this page (PDF)
