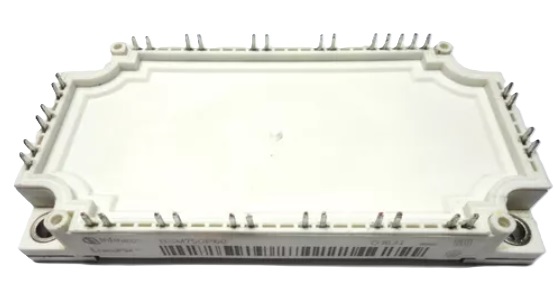

BSM75GP60 Infineon - IGBT Module

BSM75GP60 Description

The BSM75GP60 from Infineon Technologies is an IGBT module with a 600 V / 75 A rating. It is built with a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Looking for a replacement BSM75GP60? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

BSM75GP60 is a 600V 75A IGBT Module.

Target Applications

Infineon BSM75GP60 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	PIM - three-phase inverter + rectifier + brake
VCES	600 V
Rectifier VRRM	1600 V
Isolation test voltage	2.5 kV
Mounting torque	3 Nm
Weight	300 g
