BSM75GB120DN1E3204Infineon - IGBT Module

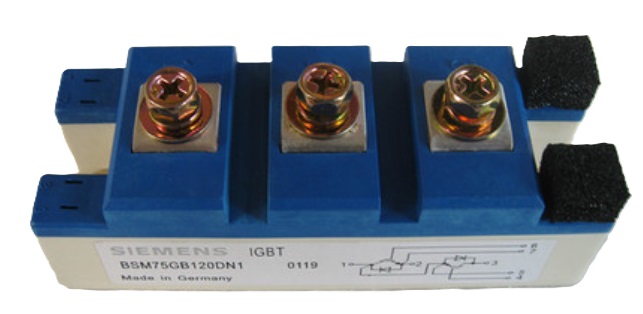

BSM75GB120DN1E3204 Description

The Infineon Technologies BSM75GB120DN1E3204 is an IGBT module rated at 1200 V and 75 A, available from USComponent. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the BSM75GB120DN1E3204.

Summary of Features

BSM75GB120DN1E3204 is a 1200V 75A IGBT Module.

Target Applications

Infineon BSM75GB120DN1E3204 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (formerly Eupec)
Configuration	Dual / half-bridge (2-in-1)
VCES	1200 V
IC nom	75 A
Similar-rating parts	2MBI75N-120, CM75DY-24H, BSM75GB120DN2, BSM75GB120DLC (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)
