BSM35GP120G Description

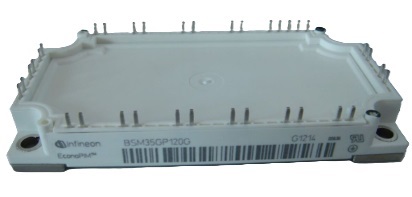

The BSM35GP120G is an IGBT module made by Infineon Technologies. Inside, it has a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the BSM35GP120G, and please confirm ratings against the datasheet before ordering.

Target Applications

Infineon BSM35GP120G is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	PIM - three-phase inverter + rectifier + brake
VCES	1200 V
Rectifier VRRM	1600 V
Isolation test voltage	2.5 kV
Mounting torque	3 Nm
Weight	300 g
