BSM100GB120DLCK Infineon - IGBT Module

BSM100GB120DLCK Description

The BSM100GB120DLCK from Infineon Technologies is an IGBT module. The module contains two switches in a half-bridge (2-in-1) arrangement. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

We help engineers and repair technicians find parts like the BSM100GB120DLCK, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Infineon BSM100GB120DLCK is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

BSM100GB120DLCK is a 1,200 V, 100 A IGBT module, dual (half bridge) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	100 A

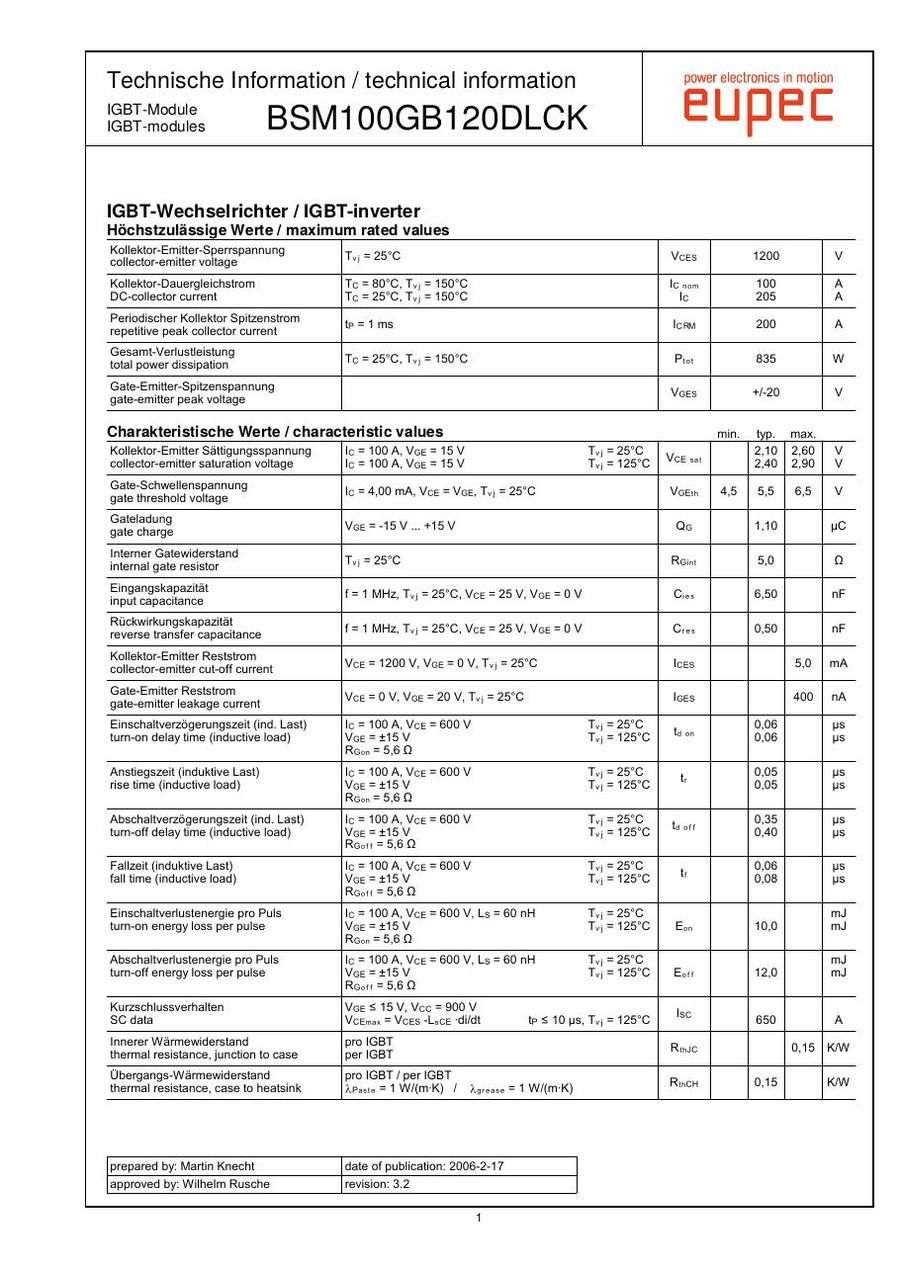

Datasheet	Available on this page (PDF)

Status: discontinued by Infineon (Product Discontinuation PD_051_21, last order date 2022-06-15). Infineon recommended replacement: FF100R12RT4 (same 34 mm housing). Infineon notes that a replacement is not always a one-to-one drop-in: check the datasheet limits and gate drive conditions. USComponent can still source the original BSM100GB120DLCK as well as the replacement.

Technical document (PDF)  |  Request a quote for BSM100GB120DLCK (reply within 24 hours)
