BSM100GB170DLC Infineon - IGBT Module
Discontinued: Infineon recommended replacement: FF150R17KE4. We supply both the original BSM100GB170DLC and the replacement - check the datasheets before switching.
BSM100GB170DLC Description
The BSM100GB170DLC from Infineon Technologies is an IGBT module. It is built with two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.
USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the BSM100GB170DLC; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.
Summary of Features
BSM100GB170DLC is a 1,700 V, 100 A IGBT module, dual (half bridge) configuration.
Target Applications
Infineon BSM100GB170DLC is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.
Key Specifications
BSM100GB170DLC is a 1,700 V, 100 A IGBT module, dual (half bridge) configuration. Source: manufacturer datasheet.
| Parameter | Value |
|---|---|
| Product type | IGBT module |
| Configuration | Dual (half bridge) |
| Collector-emitter voltage (VCES) | 1,700 V |
| Collector current (IC) | 100 A |

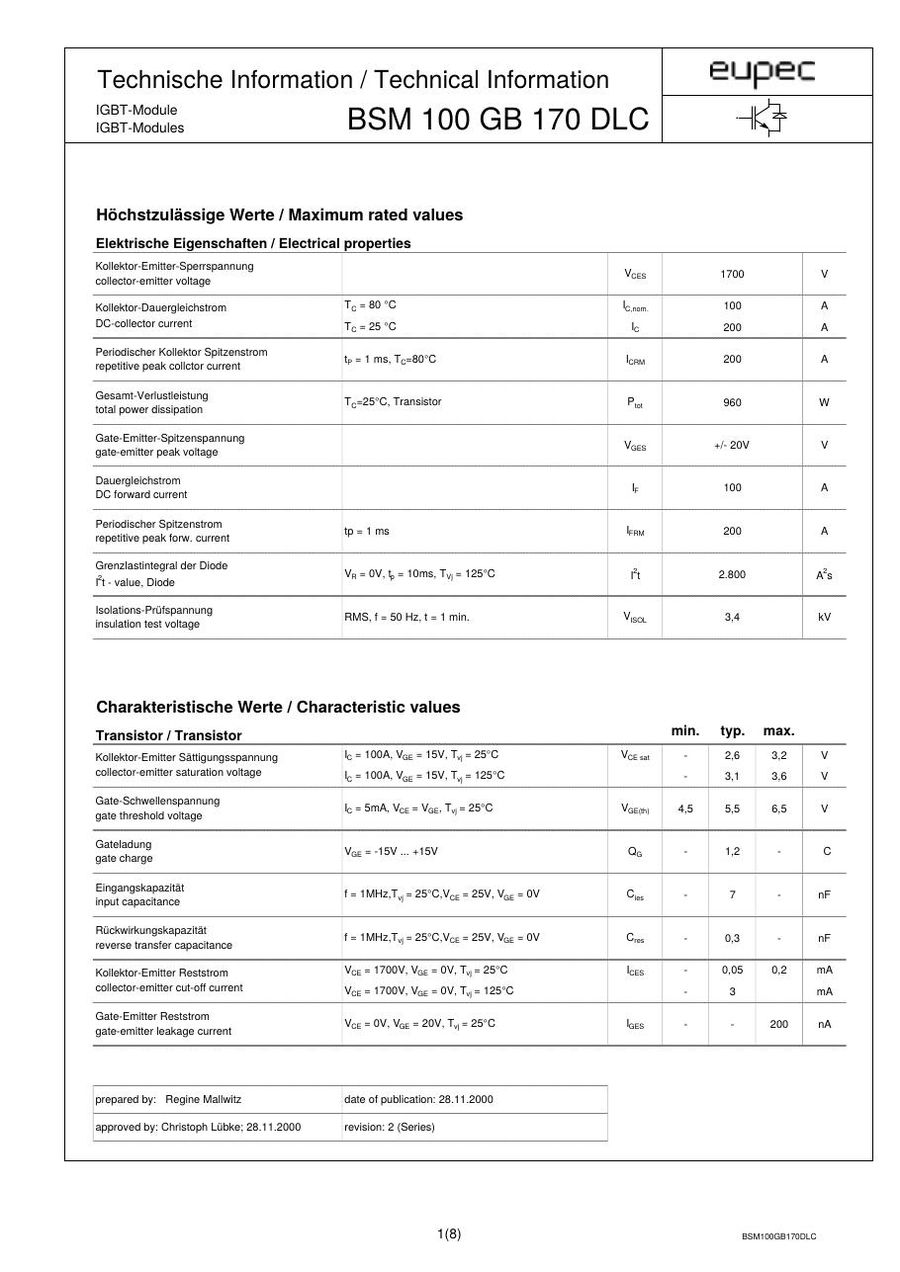

| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for BSM100GB170DLC (reply within 24 hours)
Related Part Numbers
| BSM75GB170DLC 1700(V) / 75(A) | BSM100GB120DLC 1200V, 100A | BSM150GB170DLC 1700V, 150A | BSM200GB170DLC 1700V, 400A |
| BSM50GB170DLC 1700(V) / 50(A) | BSM100GB60DLC 600V, 100A | BSM75GB60DLC 600V, 75A | BSM75GB120DLC 1200V, 75A |
| BSM100GB170DN2 1700V, 100A | BSM100GB170DL 1700V, 100A | BSM100GB170DN2E3256 1700V, 100A | BSM100GB120DN2_S7 1200V, 100A |
| BSM100GB120DN2_E3256 100A/1200V | BSM100GB60DN2 600V, 100A | BSM100GB120DN2_B2 1200V, 100A | BSM100GD120 1200V, 100A |
