7MBI100N-060 Fuji Electric - IGBT Module

Also written as: 7MBI100N060

Category: IGBT Modules

Specifications: 600V, 100A

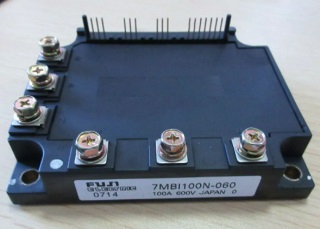

7MBI100N-060, FUJI, IGBT Module (N Series)

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

7MBI100N-060 Description

Rated at 600 V and 100 A, the Fuji Electric 7MBI100N-060 is an IGBT module. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 7MBI100N-060 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

7MBI100N-060 is a 600 V, 100 A 7-in-1 IGBT module (N series) from Fuji Electric: 3-phase inverter plus brake chopper with overcurrent limiting function.

  • Including brake chopper
  • Square RBSOA
  • Low saturation voltage
  • Overcurrent limiting function (~3 times rated current)

Target Applications

Fuji Electric 7MBI100N-060 finds applications in various industries and systems where high power switching is required.

Key Specifications

7MBI100N-060 is a 600 V, 100 A 7-in-1 IGBT module (N series) from Fuji Electric: 3-phase inverter plus brake chopper with overcurrent limiting function. Source: Fuji Electric datasheet 7MBI 100N-060 (7 in 1 IGBT, N series).

ParameterValue
ManufacturerFuji Electric
Product typeIGBT module (N series), 7 in 1
Configuration3-phase inverter (6 IGBTs) + brake chopper (IGBT + FWD), overcurrent limiting circuit - see equivalent circuit
Inverter VCES / VGES600 V / ±20 V
Inverter collector currentIC 100 A continuous; IC pulse 200 A (1 ms); -IC 150 A
Inverter collector power dissipation PC400 W (1 device)
Brake chopper IGBTVCES 600 V; IC 50 A continuous; IC pulse 100 A; PC 200 W
Brake chopper FWDVRRM 600 V; IF(AV) 1 A; IFSM 50 A (10 ms)
Operating junction / storage temperature+150 °C / -40 to +125 °C
Isolation voltage VISO2500 V (AC 1 min)
Screw torqueMounting 3.5 N·m; terminals 3.5 N·m (recommended 2.5 - 3.5 N·m, M5)
DatasheetAvailable on this page (PDF)

7MBI100N-060 Video

7MBI100N-060 video

Technical document (PDF)  |  Request a quote for 7MBI100N-060 (reply within 24 hours)
