7MBI40N-120 Description

Fuji Electric makes the 7MBI40N-120, a 1200 V, 40 A IGBT module. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 7MBI40N-120 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Fuji Electric 7MBI40N-120 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

7MBI40N-120 is a 1,200 V, 40 A IGBT module, 7-in-1 configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	7-in-1
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	40 A
Isolation voltage	2,500 V

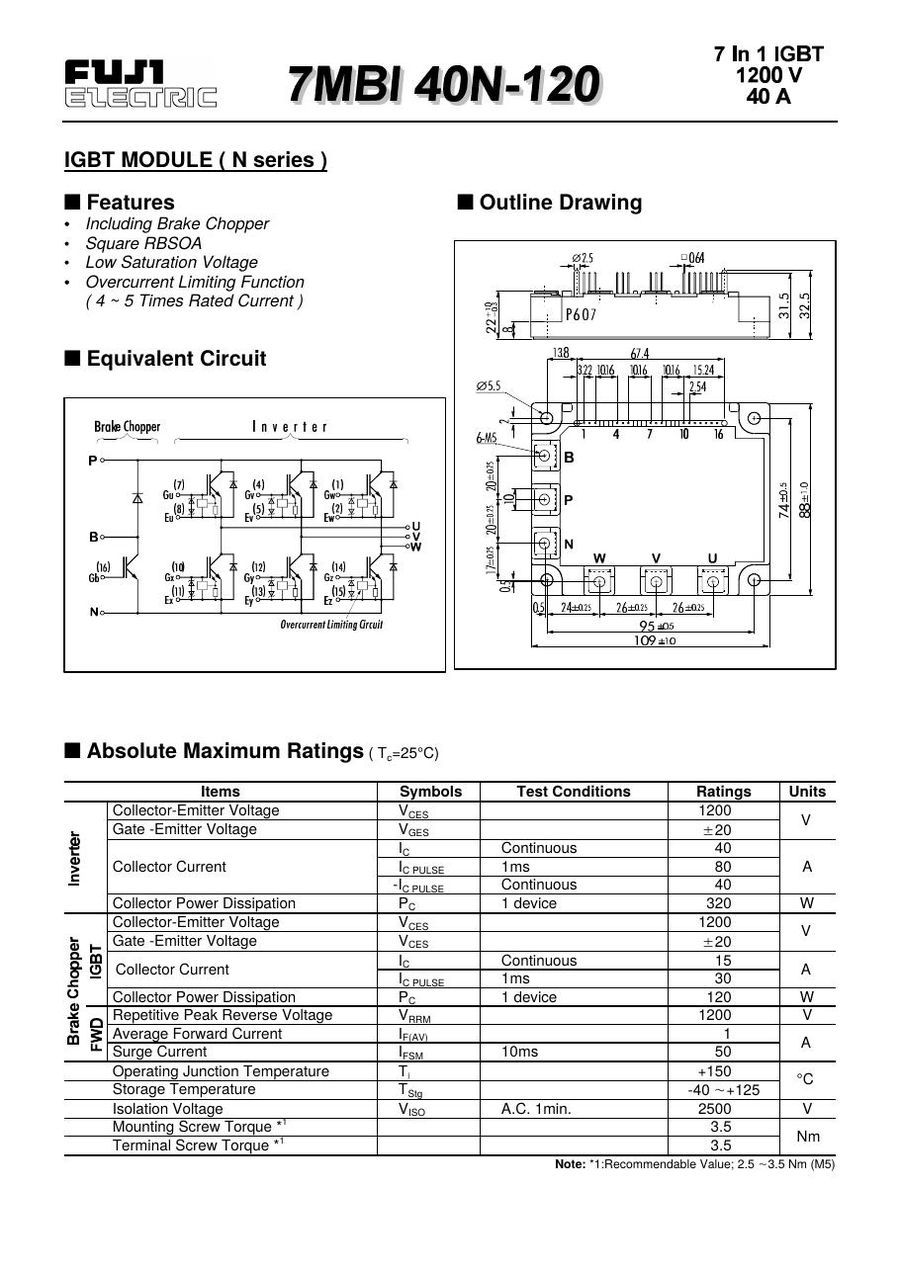

Datasheet	Available on this page (PDF)
