6MBP50RA060-01 Fuji Electric - IGBT Module

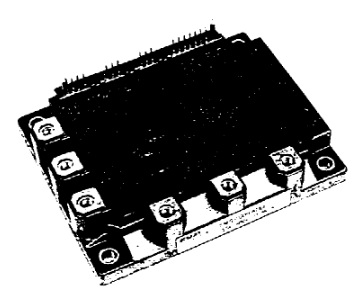

6MBP50RA060-01 Description

Fuji Electric 6MBP50RA060-01 is an intelligent power module (IPM) rated at 600 V and 50 A. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

Request a quote for the 6MBP50RA060-01 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

6MBP50RA060-01 is a 600V 50A IPM.

Target Applications

Fuji Electric 6MBP50RA060-01 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	IGBT-IPM, R-Series, 6-in-1 (three-phase inverter), IGBT chip Tj over-heating protection
DC bus voltage	450 V (surge 500 V)
VCES	600 V
IC	50 A DC
ICP	100 A (1 ms)
Collector power dissipation	198 W (one element)
VCE(sat) max.	2.8 V @ rated IC
Isolation voltage	AC 2.5 kV (case-terminal)
Screw torque	M5 mounting / terminals: 3.5 N·m max.
Junction temperature	150 °C max.
