6MBP25RA120-01 Fuji Electric - IGBT Module

Category: Intelligent Power Modules (IPM)

Specifications: 1200V, 25A

6MBP25RA120-01 Fuji Electric IGBT Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

6MBP25RA120-01 Description

6MBP25RA120-01 is a 1200 V / 25 A 6-in-1 IGBT-IPM (R series) from Fuji Electric, also used as FANUC A50L-0001-0347. USComponent supplies 6MBP25RA120-01 - request a quote and we reply within 24 hours.

Summary of Features

6MBP25RA120-01 is a 1200 V / 25 A 6-in-1 IGBT-IPM (R series) from Fuji Electric.

  • 1200 V / 25 A 6-in-1 IGBT-IPM with built-in pre-drivers
  • Temperature protection by directly detecting the IGBT junction temperature
  • Protection: over-current, short circuit, under-voltage, IGBT chip and case over-heating, alarm output
  • Low power loss and soft switching; compatible with IPM-N series packages
  • Used as FANUC spare part A50L-0001-0347

Target Applications

Fuji Electric 6MBP25RA120-01 finds applications in various industries and systems where high power switching is required.

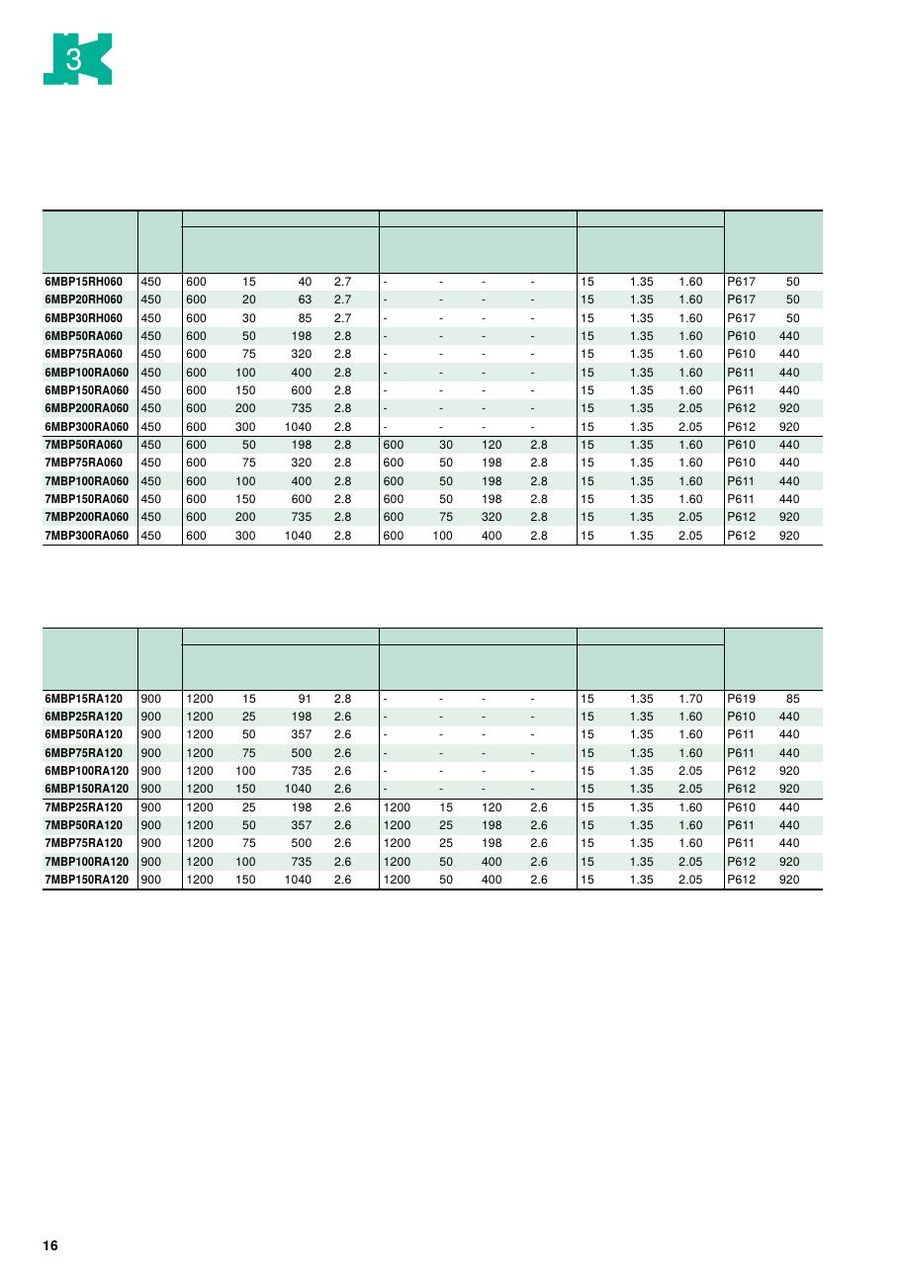

Key Specifications

6MBP25RA120-01 is a 1200 V / 25 A intelligent power module (IGBT-IPM) from Fuji Electric. Source: manufacturer datasheet (detailed).

ParameterValue
ManufacturerFuji Electric
Product typeIGBT-IPM, R series
Configuration6-in-1 (3-phase inverter)
Collector-emitter voltage (VCES)1200 V
Collector current (IC)25 A DC, 50 A pulse (1 ms)
Collector power dissipation (PC)198 W (one transistor)
DC bus voltage (VDC)900 V max; 800 V recommended max
Collector-emitter saturation voltage (VCE(sat))2.6 V max (IC = 25 A)
FWD forward voltage (VF)3.0 V max (IF = 25 A)
Switching timeton 0.3 µs min, toff 3.6 µs max, trr 0.4 µs max (VDC = 600 V, IC = 25 A, Tj = 125 °C)
Over-current protection level (IOC)38 A min (Tj = 125 °C)
IGBT chip over-heating protection (TjOH)150 °C min
Case over-heating protection (TCOH)110 - 125 °C
Under-voltage protection (VUV)11.0 - 12.5 V
Pre-driver supply voltage (VCC)15 V typ (13.5 - 16.5 V)
Thermal resistance (Rth(j-c))0.63 °C/W IGBT, 1.33 °C/W FWD (max)
Junction temperature (Tj)150 °C max
Operating case temperature-20 to +100 °C
Isolation voltage (Viso)AC 2.5 kV (1 min)
FANUC part numberA50L-0001-0347
DatasheetFuji Electric 6MBP25RA120 (PDF on this page)

FANUC part number: also known as FANUC A50L-0001-0347 (see A50L-0001-0347).
