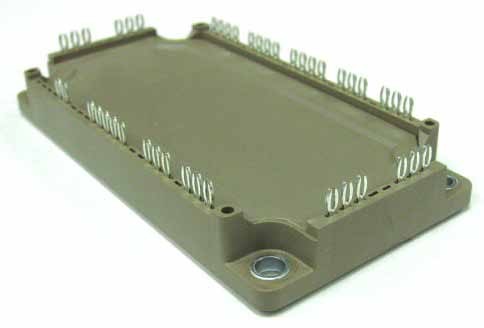

6MBI100VX-170-50 Fuji Electric - IGBT Module

6MBI100VX-170-50 Description

6MBI100VX-170-50 is a 1700 V / 100 A 6-pack (3-phase inverter) IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Industrial machines, Welding machines.

USComponent supplies 6MBI100VX-170-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 6MBI100VX-170-50 is used for Inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Industrial machines, Welding machines.

Key Specifications

6MBI100VX-170-50 is a 1700 V / 100 A 6-pack (3-phase inverter) IGBT module from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	V series (6th-Generation)
Configuration	6-pack (3-phase inverter)
Collector-emitter voltage (VCES)	1700 V
Collector current (IC)	100 A
Package	M648 (EconoPACK™)
Terminal type	Press fit pins
Size	62 x 122 mm
Net mass	300 g
Supply status (Fuji)	Available
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 6MBI100VX-170-50 (reply within 24 hours)
