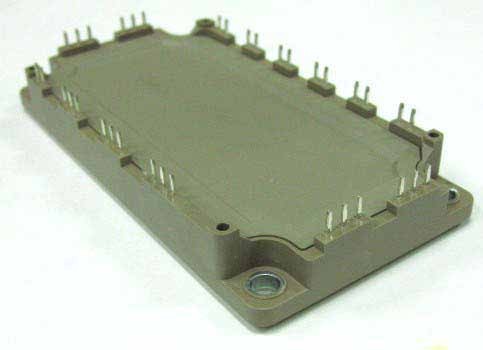

6MBI100VB-120-50 Fuji Electric - IGBT Module

6MBI100VB-120-50 Description

6MBI100VB-120-50 is a 1200 V / 100 A 6-pack (3-phase inverter) IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Industrial machines, Welding machines.

USComponent supplies 6MBI100VB-120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 6MBI100VB-120-50 is used for inverters for motor drives, AC and DC servo drive amplifiers, uninterruptible power supplies (UPS) and industrial machines such as welding machines.

Key Specifications

Fuji Electric 6MBI100VB-120-50 is a 1,200 V, 100 A IGBT module, V series, six-pack (6 in one package). Source: Fuji Electric 6MBI100VB-120-50 datasheet. Values at 25 °C unless noted.

Parameter	Value
Product type	IGBT module, V series
Configuration	Six-pack (6 in one package, three-phase bridge) with thermistor
Collector-emitter voltage (VCES)	1,200 V
Gate-emitter voltage (VGES)	±20 V
Collector current (IC, continuous)	100 A (Tc = 100 °C)
Pulse collector current (ICP, 1 ms)	200 A
Collector power dissipation (PC, 1 device)	520 W
VCE(sat) at terminals, VGE = 15 V, Tj = 25 °C	2.30 V typ, 2.75 V max
Input capacitance (Cies)	9.1 nF
Junction temperature (Tj max)	175 °C (150 °C operating under switching)
Isolation voltage (Viso, AC 1 min)	2,500 V AC
Mounting	PCB mount, M5 mounting screws
Weight (typ)	300 g
Datasheet	Available on this page (PDF)
