6MBI180VX-120-50 Fuji Electric - IGBT Module

Other versions: 6MBI180VX-120-55

Category: IGBT Modules

Specifications: 1200V, 180A

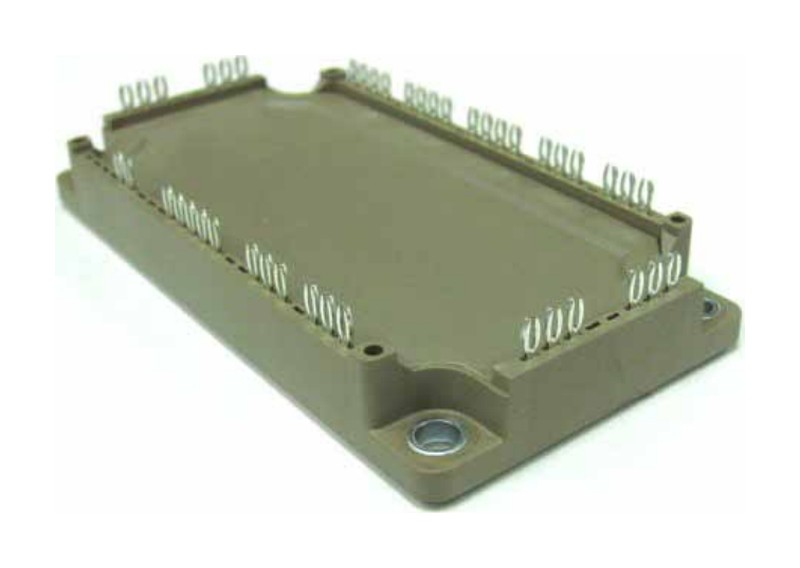

6MBI180VX-120-50 Fuji Electric IGBT Module

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

6MBI180VX-120-50 Description

6MBI180VX-120-50 is a 1,200 V / 180 A 6-pack IGBT module from Fuji Electric, V series. Datasheet ratings: IC 150 A continuous at Tc = 100 °C, 400 A pulse, VCE(sat) 2.70 V typ. at 200 A, 2,500 VAC isolation. Package EconoPACK™ M648, press-fit pins, 62 x 122 mm. Typical applications: Inverter for Motor Drive; AC and DC Servo Drive Amplifier; Uninterruptible Power Supply; Industrial machines, such as welding machines.

USComponent supplies 6MBI180VX-120-50 and other Fuji Electric IGBT modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

6MBI180VX-120-50 is a 1,200 V / 180 A 6-pack IGBT module from Fuji Electric, V series.

  • 1,200 V / 180 A 6-pack IGBT module, V series
  • Compact Package
  • P.C.Board Mount
  • Low VCE (sat)
  • VCE(sat) 2.70 V typ. / 3.15 V max. at 200 A, Tj = 25 °C (terminal)
  • Tj 175 °C, Tjop 150 °C
  • Isolation voltage 2,500 VAC
  • EconoPACK™ M648, press-fit pins

Target Applications

Fuji Electric 6MBI180VX-120-50 is used for Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial machines, such as welding machines.

Key Specifications

6MBI180VX-120-50 is a 1,200 V / 180 A 6-pack IGBT module from Fuji Electric, V series. Source: Fuji Electric datasheet (July 2015).

ParameterValue
ManufacturerFuji Electric
Product typeIGBT module
SeriesV series (6th generation)
Configuration6-pack (6 in one package, 3-phase inverter)
Collector-emitter voltage (VCES)1,200 V
Collector current IC (continuous, Tc = 100 °C)150 A
Collector current IC pulse (1 ms)400 A
Collector power dissipation (Pc, 1 device)835 W
VCE(sat) (terminal), IC = 200 A, VGE = 15 V, Tj = 25 °C2.70 V typ. / 3.15 V max.
Gate-emitter threshold voltage VGE(th)6.0 / 6.5 / 7.0 V (min. / typ. / max.)
Junction temperature (Tj)175 °C
Operating junction temperature (Tjop, under switching)150 °C
Storage temperature (Tstg)-40 to +125 °C
Isolation voltage (Viso, AC 1 min)2,500 VAC
Screw torque, mountingM5: 2.5 - 3.5 N·m (recommended)
PackageEconoPACK™ M648
TerminalsPress-fit pins
Size62 x 122 mm
Weight (typ.)300 g
Supply status (Fuji)Available
Applications (datasheet)Inverter for Motor Drive; AC and DC Servo Drive Amplifier; Uninterruptible Power Supply; Industrial machines, such as welding machines
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for 6MBI180VX-120-50 (reply within 24 hours)
