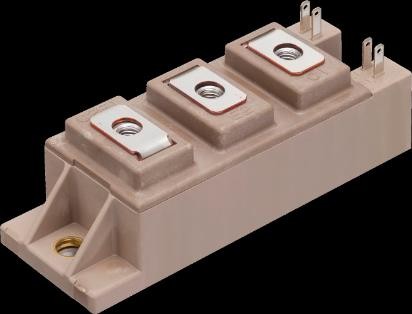

2MBI75VA-120-50 Fuji Electric - IGBT Module

2MBI75VA-120-50 Description

2MBI75VA-120-50 is a 1200 V / 75 A 2-pack (half-bridge) IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: AC-switch for UPS, PCS (power conditioning systems).

USComponent supplies 2MBI75VA-120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 2MBI75VA-120-50 is used for AC-switch for UPS, PCS (power conditioning systems).

Key Specifications

2MBI75VA-120-50 is a 1200 V / 75 A 2-pack (half-bridge) IGBT module from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	V series (6th-Generation)
Configuration	2-pack (half-bridge)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	75 A
Package	M263 (Standard)
Terminal type	Tabs
Size	34 x 94 mm
Net mass	180 g
Supply status (Fuji)	Available
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MBI75VA-120-50 (reply within 24 hours)
