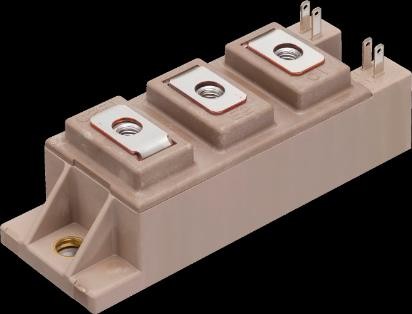

2MBI100VA-120-50 Fuji Electric - IGBT Module
Replacement for: Fuji Electric recommends 2MBI100VA-120-50 as the replacement for 2MBI100S-120, 2MBI100S-120-50, 2MBI100SC-120, 2MBI100SC-120-50. We also supply the original parts.
2MBI100VA-120-50 Description
2MBI100VA-120-50 is a 1200 V / 100 A 2-pack (half-bridge) IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: AC-switch for UPS, PCS (power conditioning systems).
USComponent supplies 2MBI100VA-120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- AC-switch
- High speed switching
- Voltage drive
- Low inductance module structure
Target Applications
Fuji Electric 2MBI100VA-120-50 is used for AC-switch for UPS, PCS (power conditioning systems).
Key Specifications
2MBI100VA-120-50 is a 1200 V / 100 A 2-pack (half-bridge) IGBT module from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Product type | IGBT module |
| Series | V series (6th-Generation) |
| Configuration | 2-pack (half-bridge) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 100 A |
| Package | M263 (Standard) |
| Terminal type | Tabs |
| Size | 34 x 94 mm |
| Net mass | 180 g |
| Supply status (Fuji) | Available |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for 2MBI100VA-120-50 (reply within 24 hours)
Related Part Numbers
| 2MBI75VA-120-50 1200V, 75A | 2MBI100VA-170-50 1700V, 100A | 2MBI150VA-120-50 1200V, 150A | 2MBI100VA-060-50 600V, 100A |
| 6MBI100VA-120-50 1200V, 100A | 2MBI75VA-170-50 1700V, 75A | 2MBI150VA-060-50 600V, 150A | 2MBI200VA-060-50 600V, 200A |
| 2MBI100XAA120-50 1200V, 100A | 2MBI100UA-120 1200V, 100A | 2MBI100XAA170-50 1700V, 100A | 2MBI100U4H-170 1700V, 100A |
| 2MBI100U4A-120 1200V, 100A | 2MBI100SC-120 1200V, 100A | 2MBI100S-120 1200V, 100A | 2MBI100PK-120 1200V, 100A |
