2MBI300N-120 Fuji Electric - IGBT Module

2MBI300N-120 Description

Fuji Electric makes the 2MBI300N-120, a 1200 V, 300 A IGBT module. Inside, it has two switches in a half-bridge (2-in-1) arrangement. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

Looking for a replacement 2MBI300N-120? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Fuji Electric 2MBI300N-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI300N-120 is a 1,200 V, 300 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	300 A

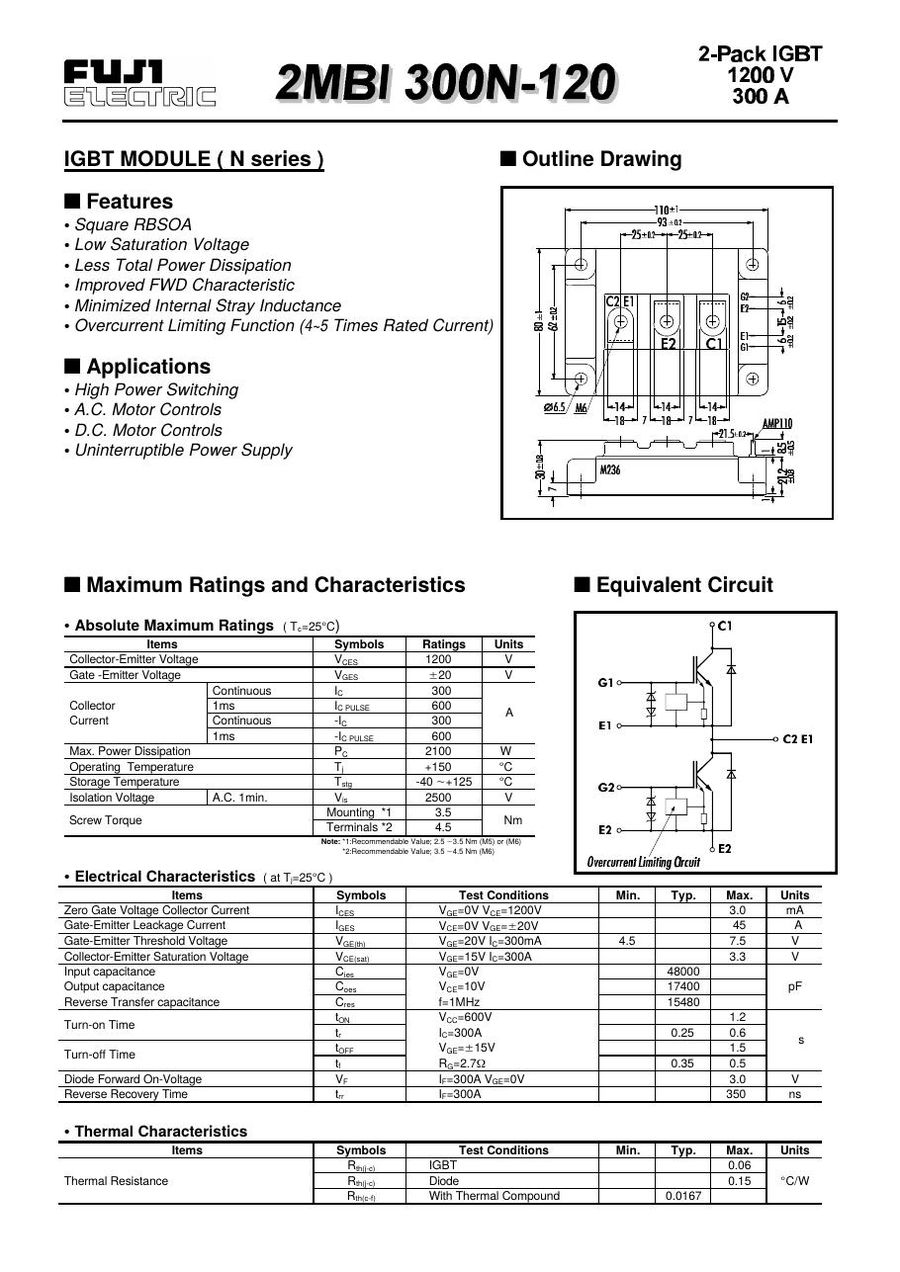

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MBI300N-120 (reply within 24 hours)
