2MBI200U4D-120 Fuji Electric - IGBT power module

2MBI200U4D-120 Description

Rated at 1200 V and 200 A, the Fuji Electric 2MBI200U4D-120 is an IGBT module. The module contains two switches in a half-bridge (2-in-1) arrangement. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

We help engineers and repair technicians find parts like the 2MBI200U4D-120, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Fuji Electric 2MBI200U4D-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI200U4D-120 is a 1,200 V, 200 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	200 A

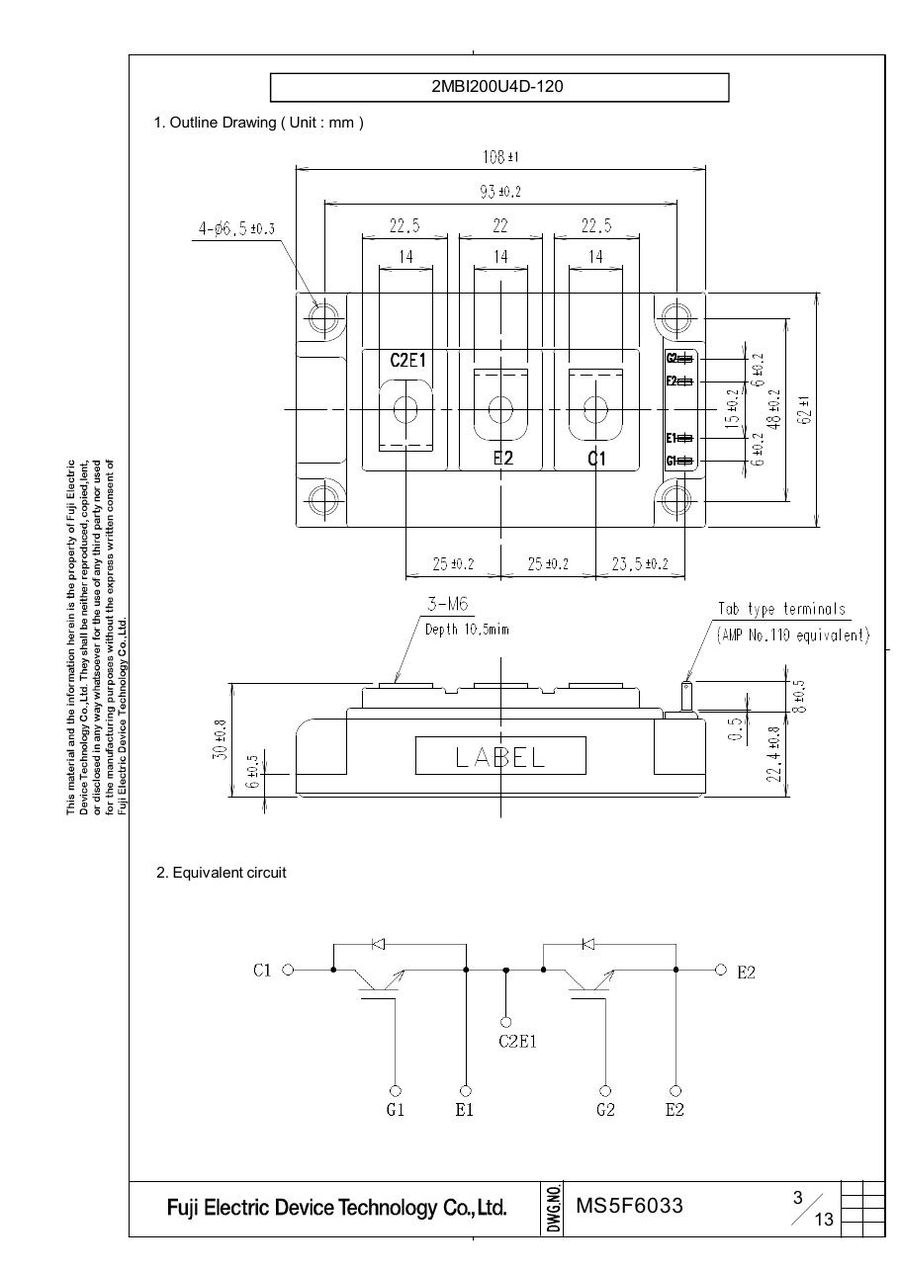

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MBI200U4D-120 (reply within 24 hours)
