2MBI200UD-120 Fuji Electric - IGBT power module

2MBI200UD-120 Description

The 2MBI200UD-120 from Fuji Electric is an IGBT module with a 1200 V / 200 A rating. It is built with two switches in a half-bridge (2-in-1) arrangement. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 2MBI200UD-120, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 2MBI200UD-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI200UD-120 is a 1,200 V, 200 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	200 A
Isolation voltage	2,500 V

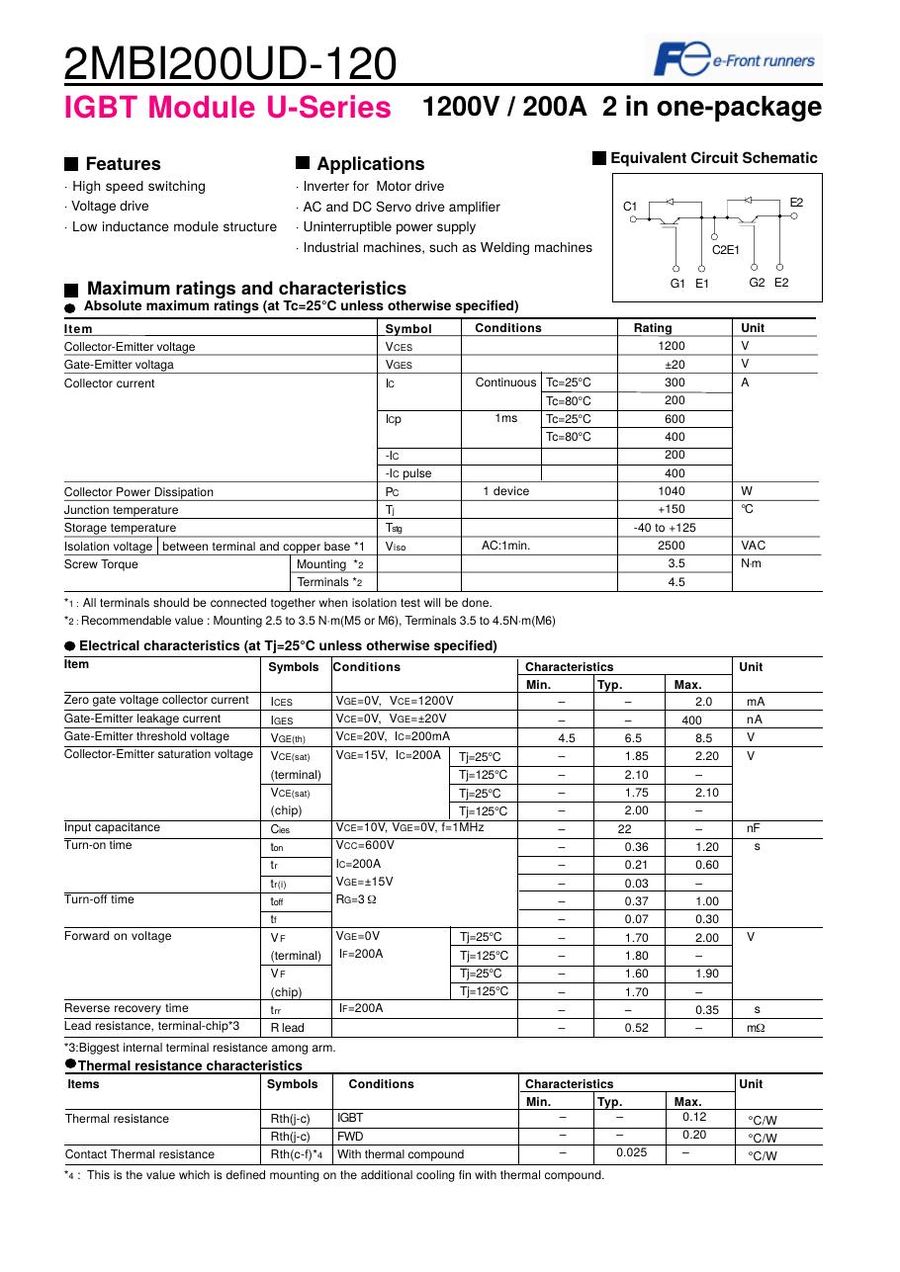

Datasheet	Available on this page (PDF)
