2MBI200U4B-120 Fuji Electric - IGBT Module

2MBI200U4B-120 Description

The Fuji Electric 2MBI200U4B-120 is an IGBT module, rated for 1200 V and 200 A. The module contains two switches in a half-bridge (2-in-1) arrangement. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 2MBI200U4B-120, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 2MBI200U4B-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI200U4B-120 is a 1,200 V, 200 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	200 A

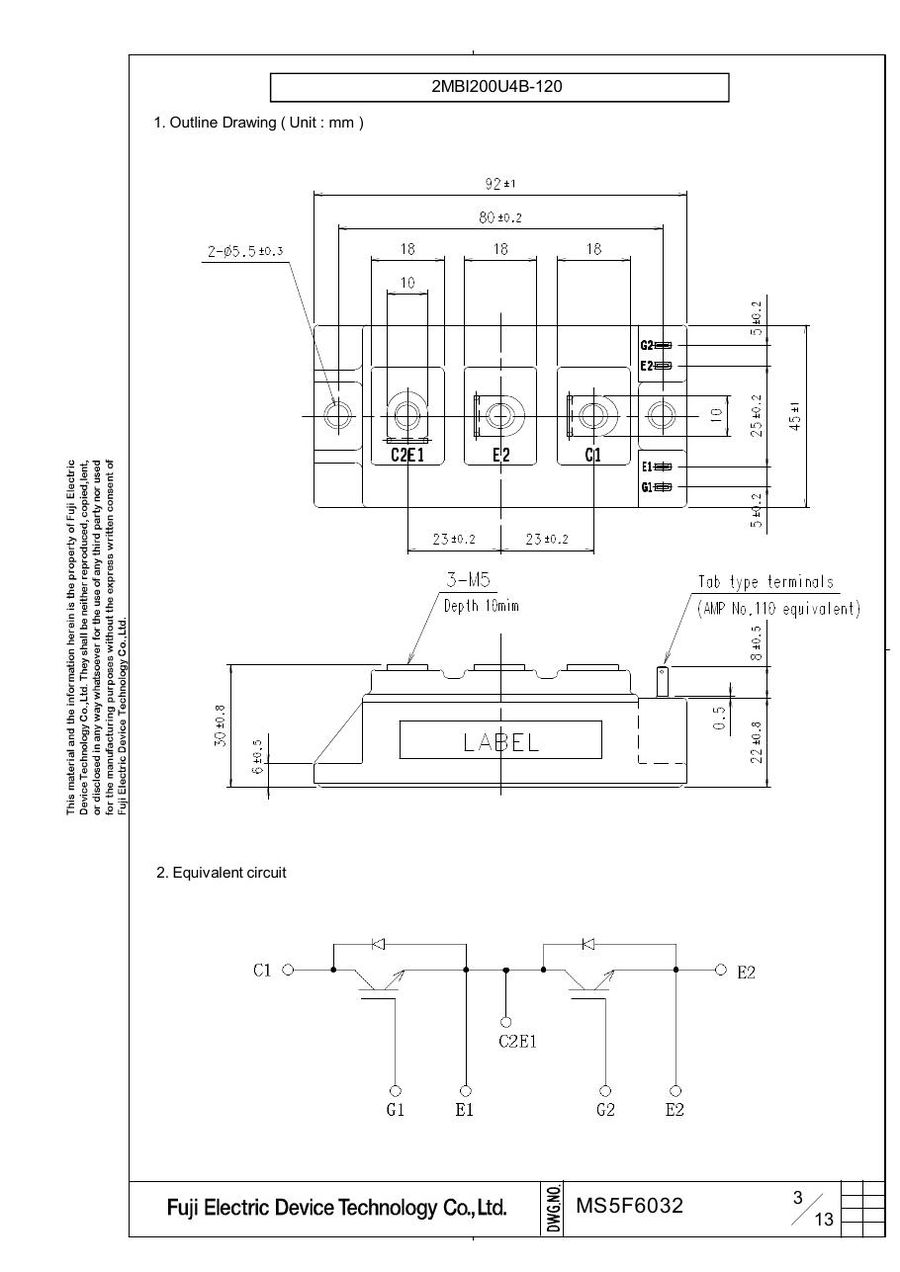

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MBI200U4B-120 (reply within 24 hours)
