2MBI300F-060 Fuji Electric - IGBT Module

2MBI300F-060 Description

Rated at 600 V and 300 A, the Fuji Electric 2MBI300F-060 is an IGBT module. Inside, it has two switches in a half-bridge (2-in-1) arrangement. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Looking for a replacement 2MBI300F-060? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Fuji Electric 2MBI300F-060 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

2MBI300F-060 is a 600 V, 300 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	300 A

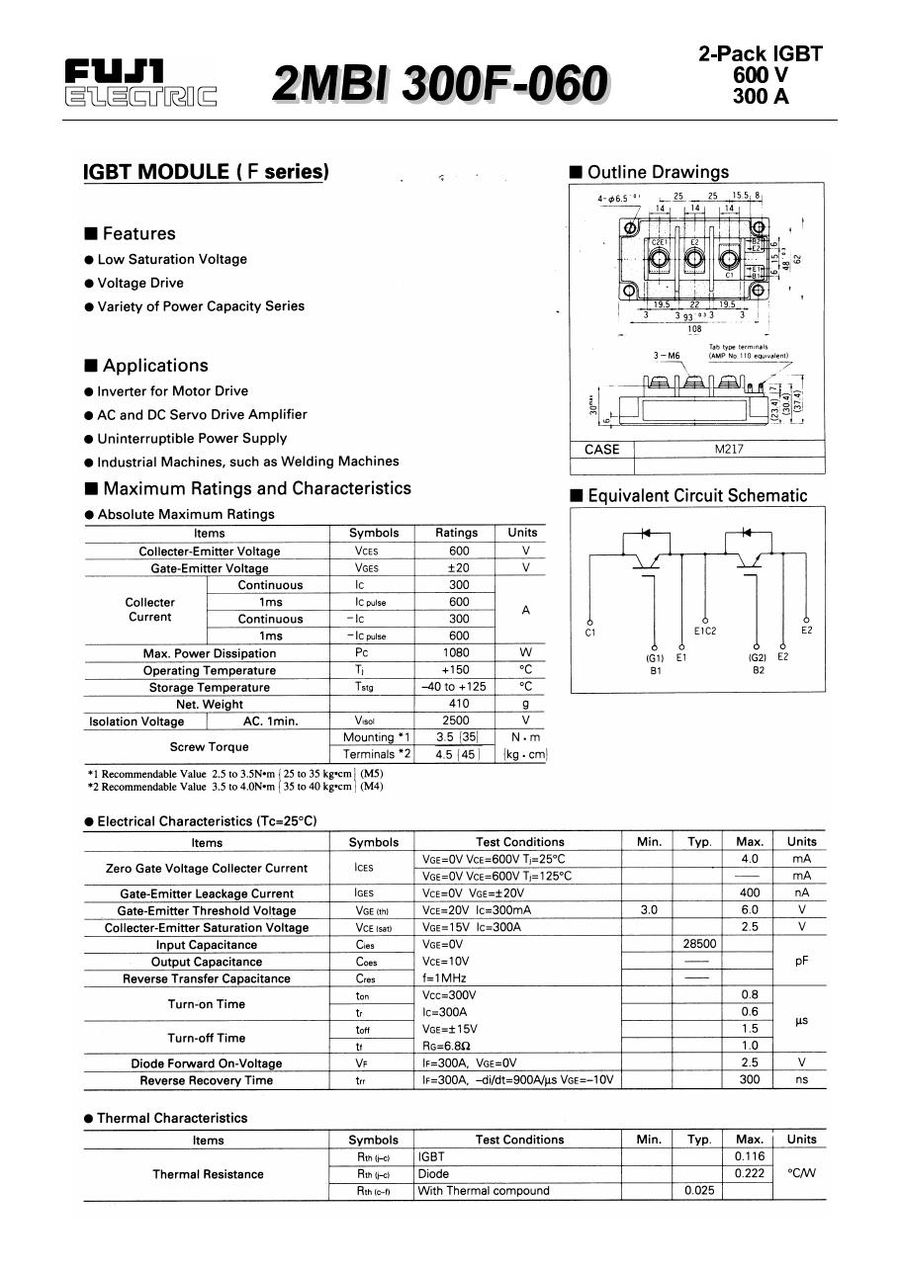

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MBI300F-060 (reply within 24 hours)
