1MBI200U4H-120L-50 Fuji Electric - IGBT Module

1MBI200U4H-120L-50 Description

The 1MBI200U4H-120L-50 from Fuji Electric is an IGBT module. Inside, it has a single switch with its freewheeling diode (1-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 1MBI200U4H-120L-50, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Fuji Electric 1MBI200U4H-120L-50 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

1MBI200U4H-120L-50 is a 1,200 V, 200 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	200 A
Isolation voltage	2,500 V

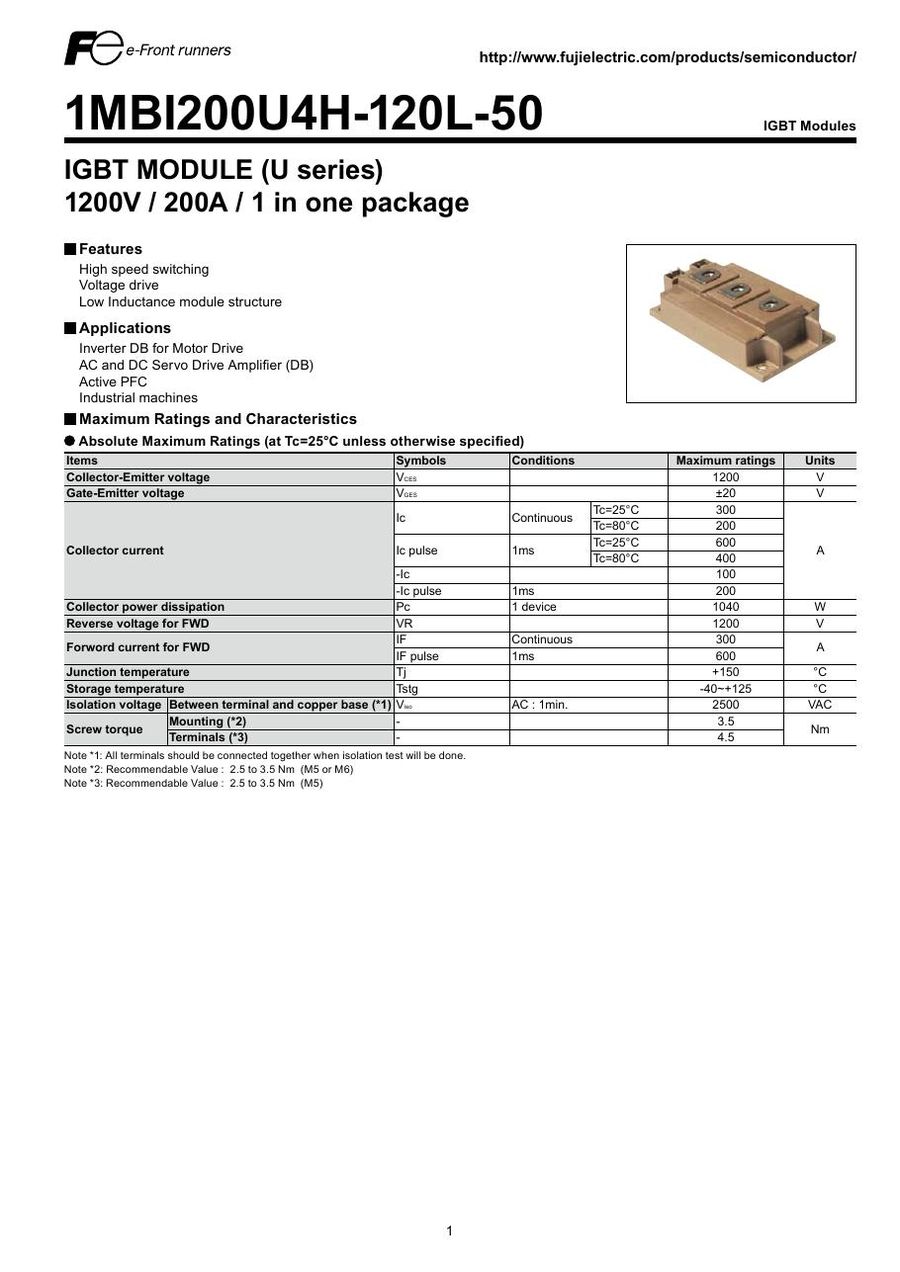

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1MBI200U4H-120L-50 (reply within 24 hours)
