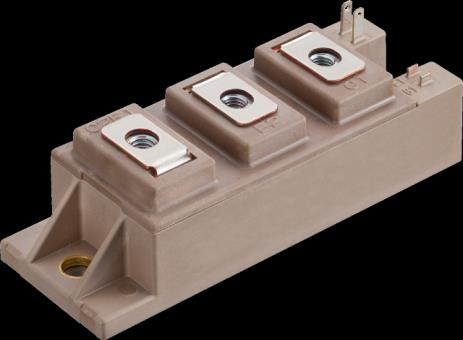

1MBI200VA-120L-50 Fuji Electric - IGBT Module

1MBI200VA-120L-50 Description

1MBI200VA-120L-50 is a 1200 V / 200 A chopper IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: inverter DB for Motor Drive, AC and DC Servo Drive Amplifier(DB), Active PFC, Industrial machines.

USComponent supplies 1MBI200VA-120L-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 1MBI200VA-120L-50 is used for Inverter DB for Motor Drive, AC and DC Servo Drive Amplifier(DB), Active PFC, Industrial machines.

Key Specifications

1MBI200VA-120L-50 is a 1200 V / 200 A chopper IGBT module from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	V series (6th-Generation)
Configuration	Chopper
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	200 A
Package	M262 (Standard)
Terminal type	Tabs
Size	34 x 94 mm
Net mass	180 g
Supply status (Fuji)	Available
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1MBI200VA-120L-50 (reply within 24 hours)
