BSM10GD120DN2 Infineon - IGBT

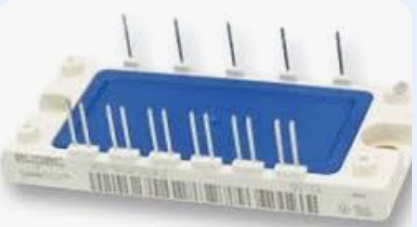

BSM10GD120DN2 Description

The BSM10GD120DN2 from Infineon Technologies (formerly Eupec) is an IGBT module with a 1200 V rating. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

Looking for a replacement BSM10GD120DN2? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Target Applications

Infineon BSM10GD120DN2 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (Siemens / eupec)
Configuration	Three-phase full bridge (six-pack) IGBT module with fast free-wheel diodes
Package	EconoPACK 2, insulated metal base plate
VCES	1200 V
IC	15 A (TC = 25 °C) / 10 A (TC = 80 °C)
IC pulse	30 A / 20 A (tp = 1 ms)
