10LPCV2440 Crydom - Relays

10LPCV2440 Description

The 10LPCV2440 is a solid state relay made by Crydom. It is widely used for heater control, motor switching, lighting and process equipment where mechanical contacts would wear out.

Looking for a replacement 10LPCV2440? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Crydom 10LPCV2440 is used for proportional power control of resistive heaters in ovens, furnaces, plastic processing and other process heating applications.

Key Specifications

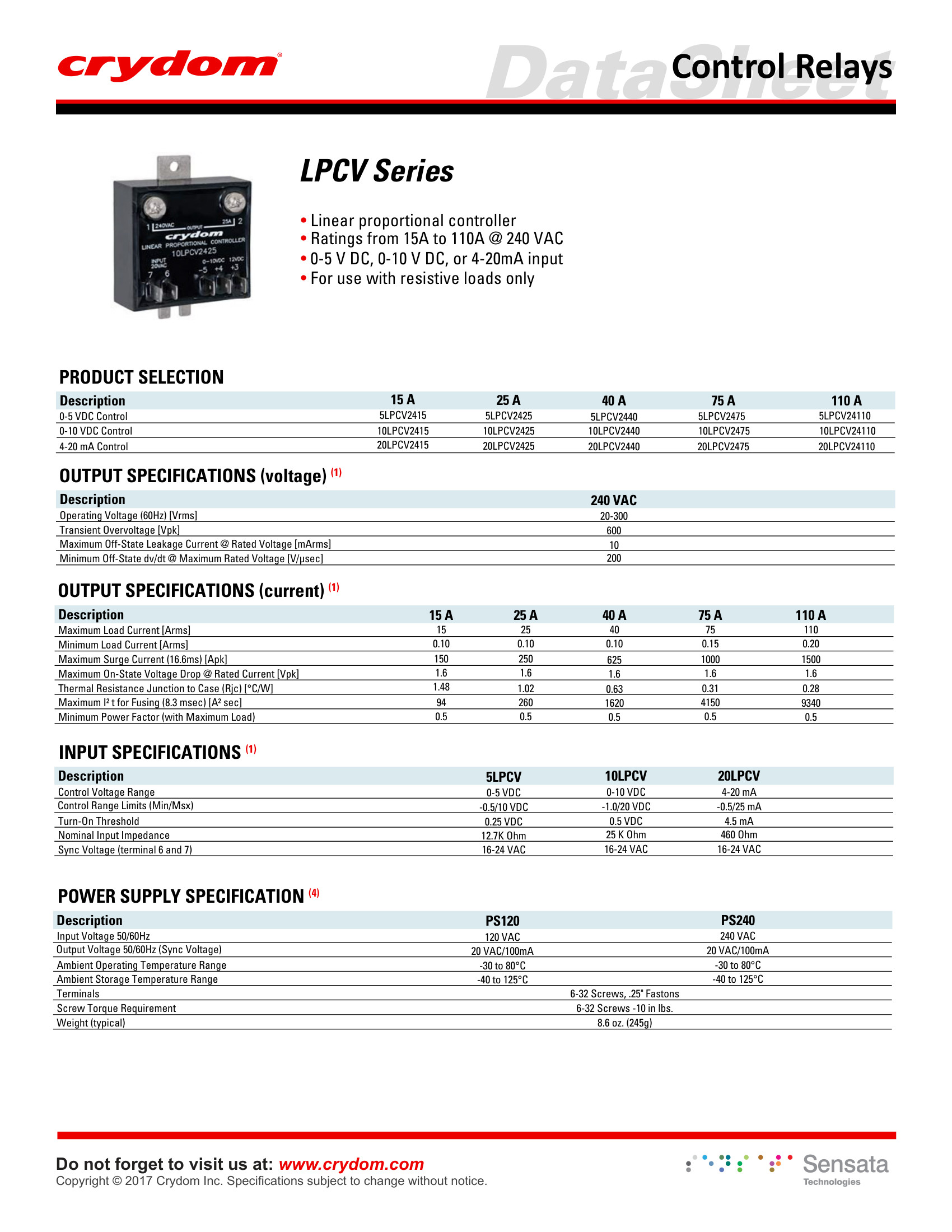

Crydom 10LPCV2440 is a 40 A linear proportional controller (LPCV Series, 240 VAC), SCR output, 0-10 VDC analog control input, for resistive loads only. Source: Crydom LPCV Series datasheet. Values at 25°C unless noted.

Parameter	Value
Output
Operating voltage (60 Hz)	20-300 Vrms
Maximum load current	40 Arms
Minimum load current	0.10 Arms
Transient overvoltage	600 Vpk
Maximum surge current (16.6 ms)	625 Apk
Maximum on-state voltage drop @ rated current	1.6 Vpk
Maximum off-state leakage @ rated voltage	10 mArms
Minimum off-state dv/dt	200 V/µs
Thermal resistance junction to case (Rjc)	0.63 °C/W
Maximum I²t for fusing (8.3 ms)	1620 A²s
Input
Control range	0-10 VDC
Control range limits (min / max)	-1.0 / 20 VDC
Turn-on threshold	0.5 VDC
Nominal input impedance	25 kOhm
Sync voltage (terminals 6 and 7)	16-24 VAC (from PS120 / PS240 power supply)
General
Dielectric strength, signal to load / signal to base	2500 Vrms
Ambient operating temperature	-30 to 80°C
Weight (typical)	6.0 oz (175 g)

Technical document (PDF)  |  Request a quote for 10LPCV2440 (reply within 24 hours)
