10PCV2415Crydom - Proportional Controller

10PCV2415 Description

The Crydom 10PCV2415 is a power semiconductor module rated at 280 V and 15 A, available from USComponent. This type of component is widely used in motor drives, power conversion and industrial control equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 10PCV2415.

Summary of Features

Target Applications

Crydom 10PCV2415 is used for proportional power control of resistive heaters in ovens, furnaces, plastic processing and other process heating applications.

Key Specifications

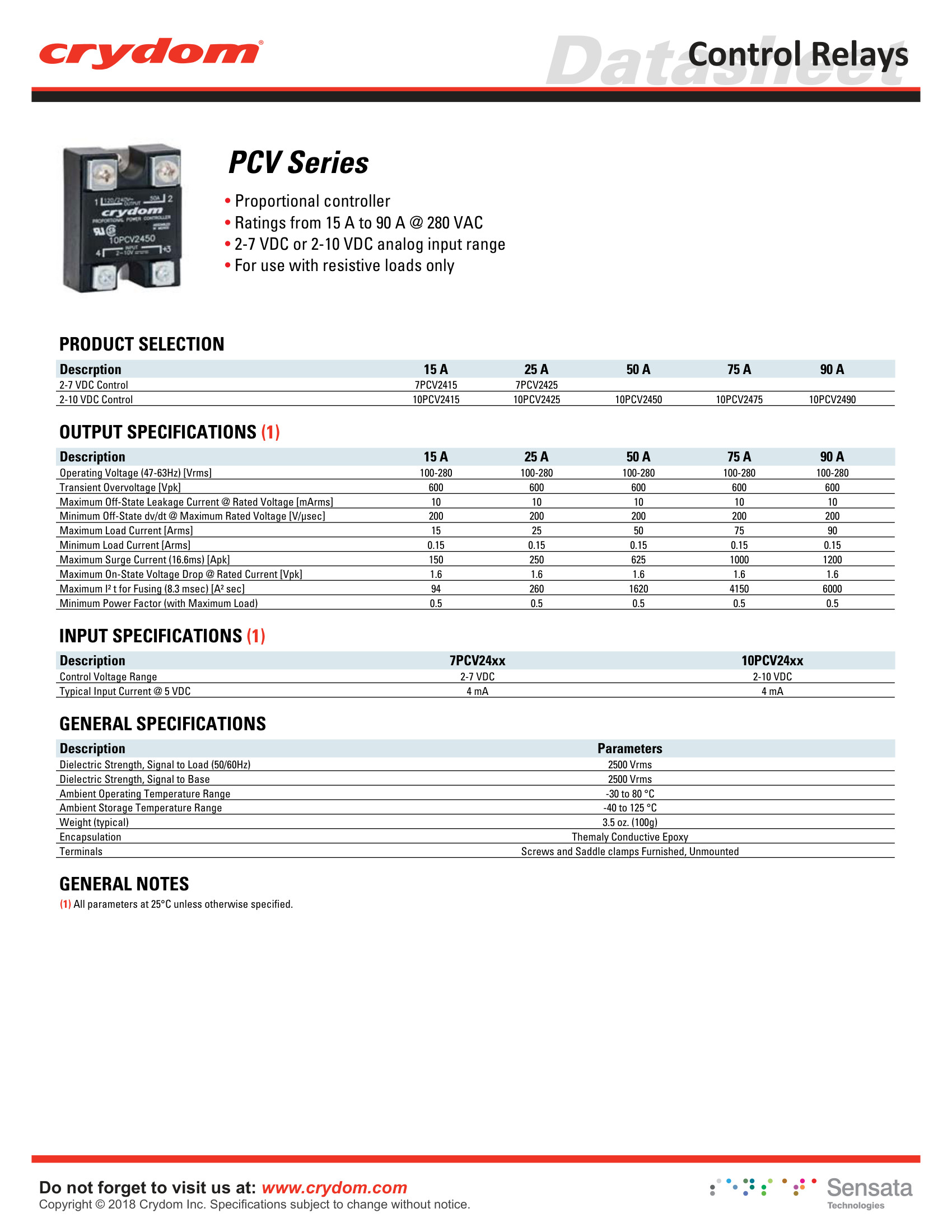

Crydom 10PCV2415 is a 15 A proportional controller (PCV Series, 100-280 VAC), SCR output, 2-10 VDC analog control input, for resistive loads only. Source: Crydom PCV Series datasheet. Values at 25°C unless noted.

Parameter	Value
Output
Operating voltage (47-63 Hz)	100-280 Vrms
Maximum load current	15 Arms
Minimum load current	0.15 Arms
Transient overvoltage	600 Vpk
Maximum surge current (16.6 ms)	150 Apk
Maximum on-state voltage drop @ rated current	1.6 Vpk
Maximum off-state leakage @ rated voltage	10 mArms
Minimum off-state dv/dt	200 V/µs
Maximum I²t for fusing (8.3 ms)	94 A²s
Input
Control voltage range	2-10 VDC
Typical input current @ 5 VDC	4 mA
General
Dielectric strength, signal to load / signal to base	2500 Vrms
Ambient operating temperature	-30 to 80°C
Weight (typical)	3.5 oz (100 g)

Download 10PCV2415 Datasheet
