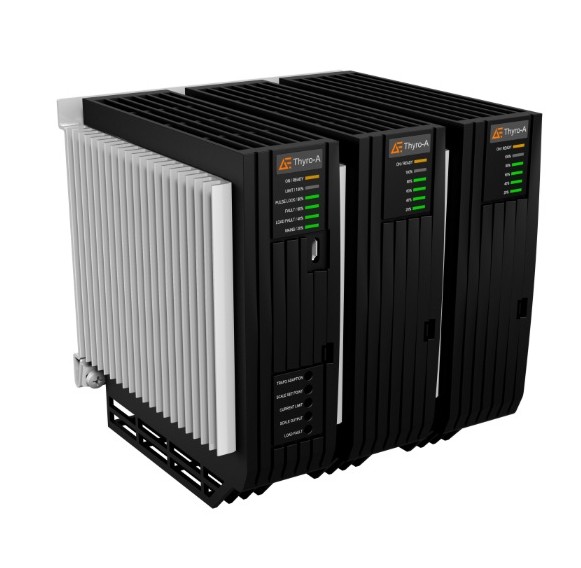

3A400-16H3 AEG - Thyro Power Controller

3A400-16H3 Description

AEG makes the 3A400-16H3, a 400 V, 16 A thyristor power controller. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 3A400-16H3, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

AEG 3A400-16H3 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.

Key Specifications

3A400-16H3 is an AEG / Advanced Energy Thyro-A 3A SCR power controller, 400 V, 16 A. Source: Thyro-A datasheet (ordering code Thyro-A-3A-400-16-H-3).

Parameter	Value
Ordering code	Thyro-A-3A-400-16-H-3
Model	Thyro-A digital SCR power controller
Phase type	3A: three phase power controller for three phase operation
Type voltage	400 V (172 V to 440 V, -57% to +10%)
Type current	16 A
Apparent power	11 kVA
Fuse (H)	Integrated semiconductor fuse
Fan (F)	Not fitted (no 'F' in ordering code)
Control (3)	Standard V, V² control modes
Operating modes	TAKT, VAR
Accuracy	±3% voltage, ±1.5% current
Frequency	47 to 63 Hz
Dimensions (W × H × D)	135 × 136 × 129 mm, 2.1 kg

Technical document (PDF)  |  Request a quote for 3A400-16H3 (reply within 24 hours)
