MIG30J806HA Toshiba - Intelligent Power Module

MIG30J806HA Description

Toshiba makes the MIG30J806HA, a 600 V, 30 A intelligent power module (IPM). An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

We help engineers and repair technicians find parts like the MIG30J806HA, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Toshiba MIG30J806HA is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

MIG30J806HA is a 600 V, 30 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	30 A

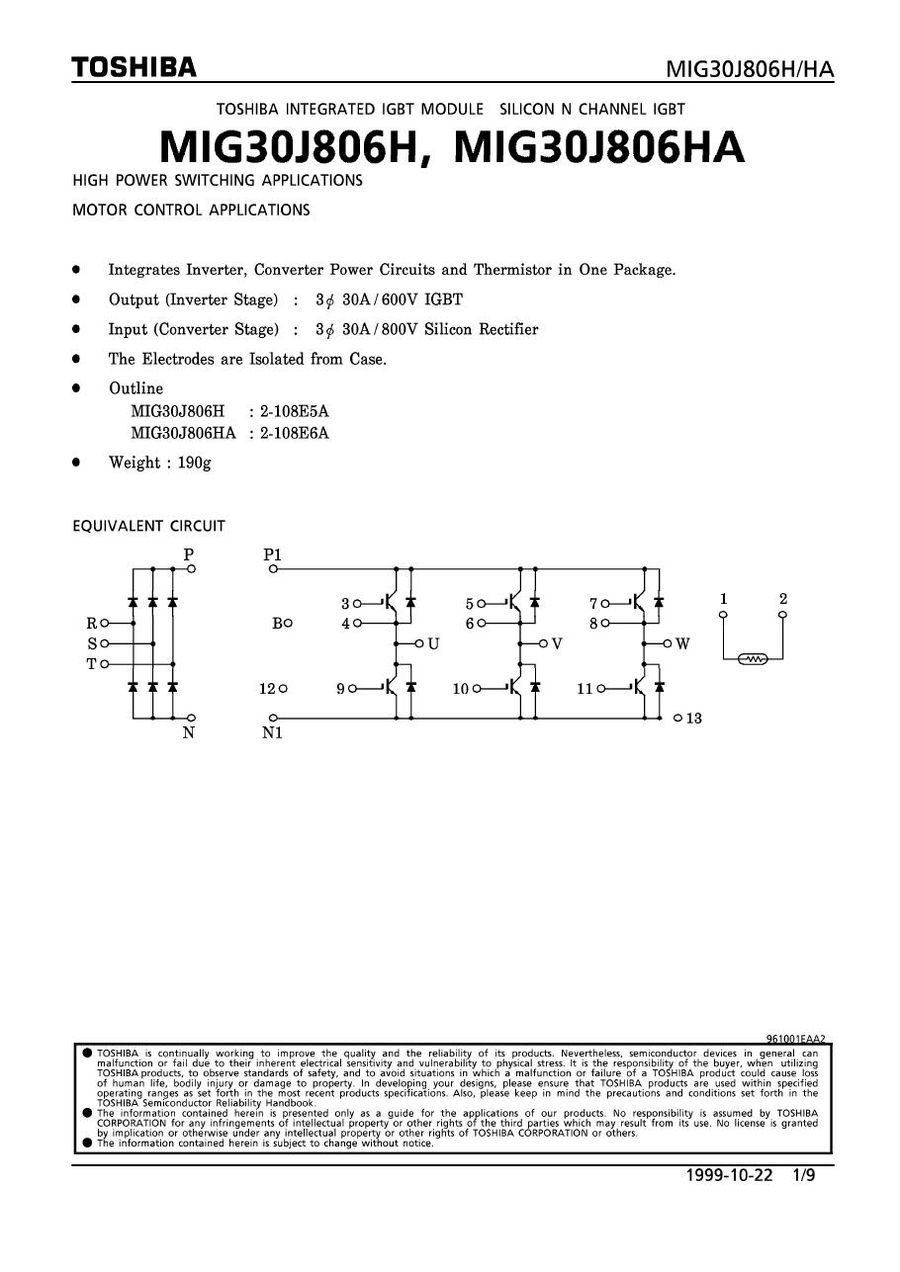

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MIG30J806HA (reply within 24 hours)
