MIG30J806H Toshiba - Intelligent Power Module

MIG30J806H Description

Rated at 600 V and 30 A, the Toshiba MIG30J806H is an intelligent power module (IPM). Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Looking for a replacement MIG30J806H? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Toshiba MIG30J806H is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

MIG30J806H is a 600 V, 30 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	30 A

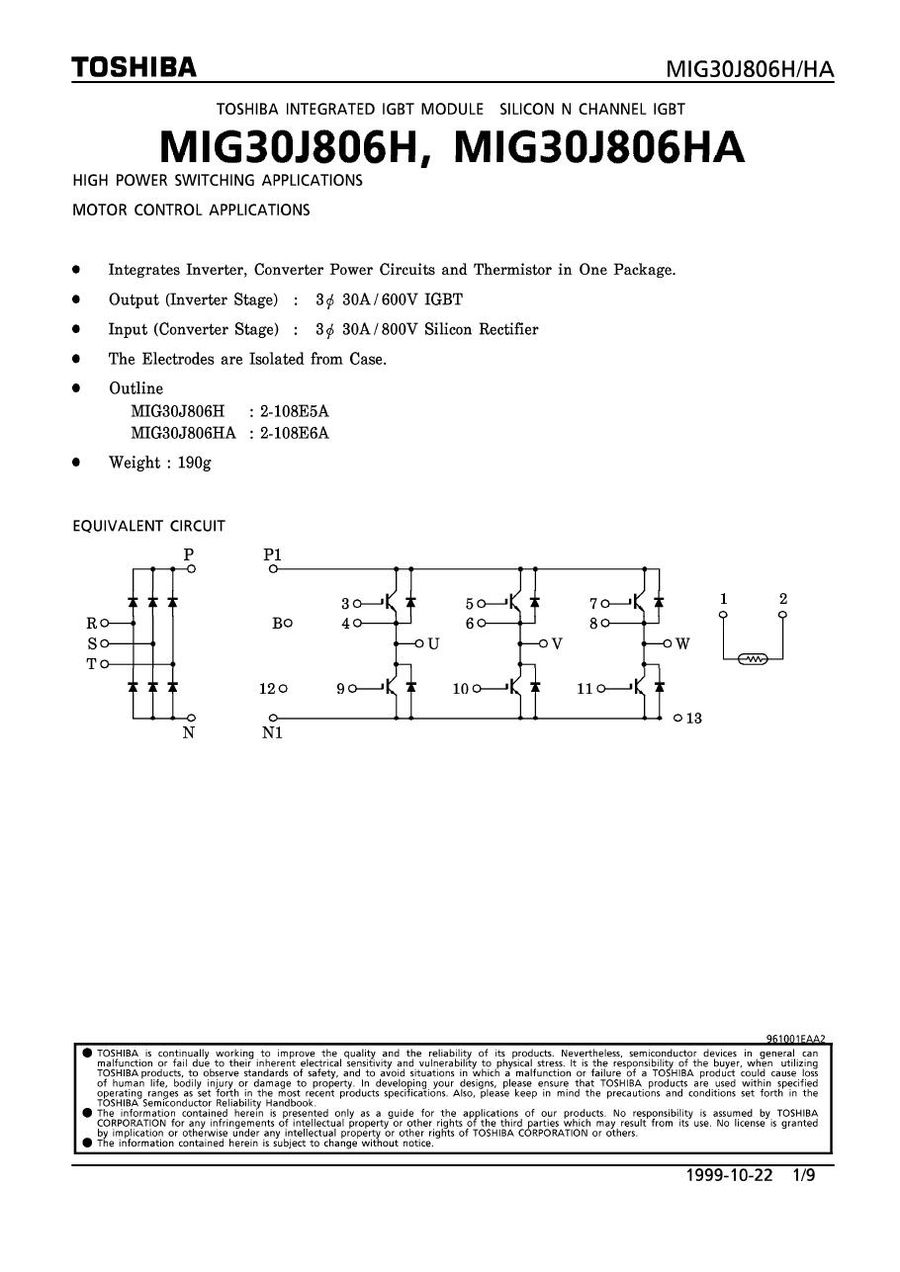

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MIG30J806H (reply within 24 hours)
