SKiiP25AC126V1 Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 50A

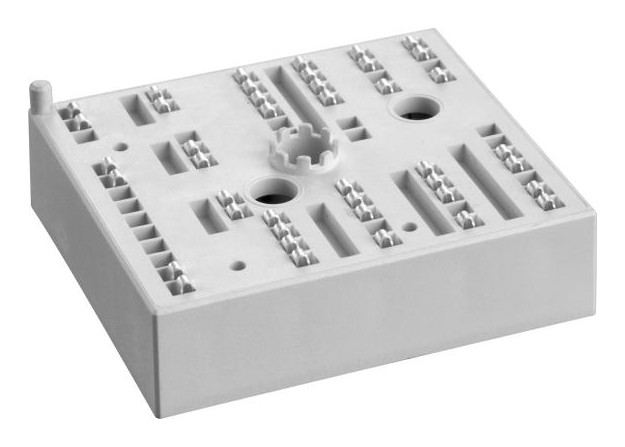

SKiiP25AC126V1 Semikron IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

SKiiP25AC126V1 Description

SKiiP25AC126V1 is a 1200 V, 50 A Semikron 3-phase bridge inverter IGBT module (Fast Trench IGBT, CAL freewheeling diodes), used for inverters up to 28 kVA and motor drives up to about 15 kW.

USComponent supplies SKiiP25AC126V1 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 1,200 V / 50 A (ICnom) 3-phase bridge inverter (six-pack)
  • Fast Trench IGBTs with soft CAL freewheeling diodes
  • MiniSKiiP 2 housing with spring contacts, no soldering
  • UL recognized (file E63532)

Target Applications

Semikron SKiiP25AC126V1 is used for Inverters up to 28 kVA and motor drives up to about 15 kW.

Key Specifications

SKiiP25AC126V1 is a 1,200 V, 50 A Semikron IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
Configuration3-phase bridge inverter (6-pack)
Collector-emitter voltage (VCES)1,200 V
Collector current (IC nom)50 A
TechnologyFast Trench IGBT, CAL freewheeling diodes
PackageMiniSKiiP 2, spring contacts

Technical document (PDF)  |  Request a quote for SKiiP25AC126V1 (reply within 24 hours)
