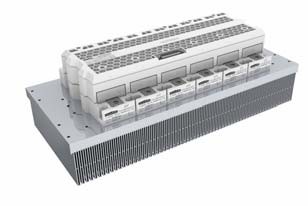

SKiiP3614GB17E4-6DPVL Semikron - Intelligent Power Module

SKiiP3614GB17E4-6DPVL Description

SKiiP3614GB17E4-6DPVL is a 1700 V / 3600 A half-bridge intelligent power module (IPM) from Semikron Danfoss (SKiiP 4 package). Typical applications: renewable energies, Traction, Elevators, Industrial drives.

USComponent supplies SKiiP3614GB17E4-6DPVL and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SKiiP3614GB17E4-6DPVL is used for Renewable energies, Traction, Elevators, Industrial drives.

Key Specifications

SKiiP3614GB17E4-6DPVL is a 1700 V / 3600 A half-bridge intelligent power module (IPM) from Semikron Danfoss (SKiiP 4 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	Intelligent power module (IPM)
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1700 V
Nominal collector current (IC nom)	3600 A
Chip technology	IGBT 4 (Trench)
Package	SKiiP 4
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Note: Semikron writes this part number as "SKiiP 3614 GB17E4-6DPVL".

Technical document (PDF)  |  Request a quote for SKiiP3614GB17E4-6DPVL (reply within 24 hours)
