SKM800GM12M7X Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 800A

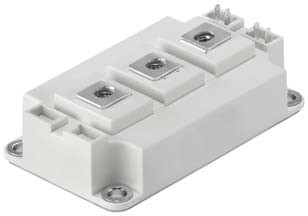

SKM800GM12M7X Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKM800GM12M7X Description

SKM800GM12M7X is a 1200 V / 800 A AC switch IGBT module from Semikron Danfoss (SEMITRANS 3 package). Typical applications: matrix Inverter, Bidirectional switch.

USComponent supplies SKM800GM12M7X and other Semikron power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • VCE(sat) with positive temperature coefficient
  • High overload capability
  • Low loss high density IGBT´s
  • Large clearance (10 mm) and creepage distances (20 mm)
  • Insulated copper baseplate using DBC Technology (Direct Bonded Copper)
  • UL recognized, file no. E63532
  • With H2S protection
  • With improved humidity robustness

Target Applications

Semikron SKM800GM12M7X is used for Matrix Inverter, Bidirectional switch.

Key Specifications

SKM800GM12M7X is a 1200 V / 800 A AC switch IGBT module from Semikron Danfoss (SEMITRANS 3 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
ConfigurationAC switch
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)800 A
Chip technologyIGBT M7
PackageSEMITRANS 3
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKM800GM12M7X (reply within 24 hours)
