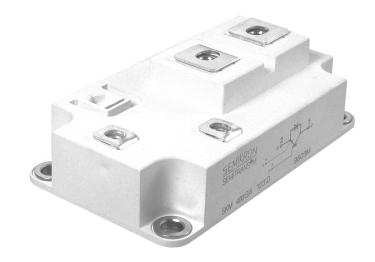

SKM800GA176D Semikron - IGBT Module

SKM800GA176D Description

SKM800GA176D is a 1700 V / 600 A single switch IGBT module from Semikron Danfoss (SEMITRANS 4 package). Typical applications: AC inverter drives.

USComponent supplies SKM800GA176D and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SKM800GA176D is used for AC inverter drives.

Key Specifications

SKM800GA176D is a 1700 V / 600 A single switch IGBT module from Semikron Danfoss (SEMITRANS 4 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Configuration	Single switch
Collector-emitter voltage (VCES)	1700 V
Nominal collector current (IC nom)	600 A
Chip technology	IGBT 3 (Trench)
Package	SEMITRANS 4
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)
