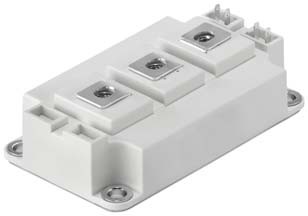

SKM500GB17E4 Semikron - IGBT Module

SKM500GB17E4 Description

SKM500GB17E4 is a 1700 V / 500 A half-bridge IGBT module from Semikron Danfoss (SEMITRANS 3 package). Typical applications: AC inverter drives, Electronic welders, Wind power, Public transport.

USComponent supplies SKM500GB17E4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SKM500GB17E4 is used for AC inverter drives, Electronic welders, Wind power, Public transport.

Key Specifications

SKM500GB17E4 is a 1700 V / 500 A half-bridge IGBT module from Semikron Danfoss (SEMITRANS 3 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1700 V
Nominal collector current (IC nom)	500 A
Chip technology	IGBT 4 (Trench)
Package	SEMITRANS 3
Supply status (Semikron)	Active (new)
Datasheet	Available on this page (PDF)
