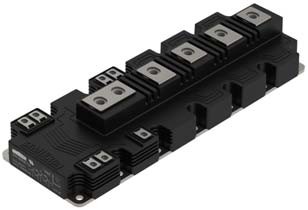

SKM1000GB17E4 Semikron - IGBT Module

SKM1000GB17E4 Description

SKM1000GB17E4 is a 1700 V / 1000 A half-bridge IGBT module from Semikron Danfoss (SEMITRANS 10 package). Typical applications: motor drives, UPS systems, Solar inverters.

USComponent supplies SKM1000GB17E4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SKM1000GB17E4 is used for Motor drives, UPS systems, Solar inverters.

Key Specifications

SKM1000GB17E4 is a 1700 V / 1000 A half-bridge IGBT module from Semikron Danfoss (SEMITRANS 10 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITRANS
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1700 V
Nominal collector current (IC nom)	1000 A
Chip technology	IGBT 4 (Trench)
Package	SEMITRANS 10
Supply status (Semikron)	Active (new)
Datasheet	Available on this page (PDF)
