SKM300GAL123DSemikron - IGBT Module

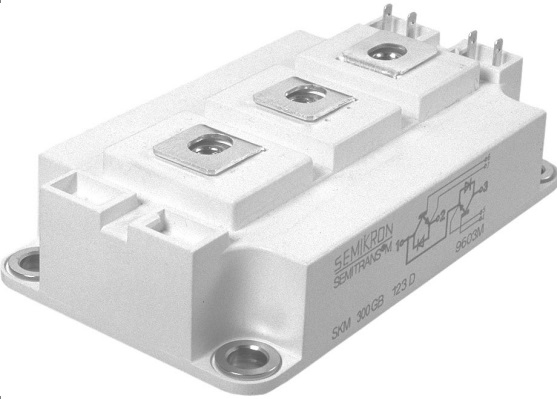

SKM300GAL123D Description

The Semikron SKM300GAL123D is an IGBT module rated at 1200 V and 300 A, available from USComponent. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the SKM300GAL123D.

Summary of Features

SKM300GAL123D is a 1200V 300A IGBT Module.

Target Applications

Semikron SKM300GAL123D is used for Switching (not for linear use), AC inverter drives and UPS.

Key Specifications

Manufacturer	Semikron
Configuration	Chopper IGBT module (GAL: IGBT with free-wheeling diode)
Package	SEMITRANS 3
VCES	1200 V
IC	300 A (TC = 25 °C) / 220 A (TC = 80 °C)
ICRM	400 A (tp = 1 ms)
VCE(sat) typ.	2.5 V @ 200 A
Isolation voltage	2500 V (AC, 1 min)
Mounting torque	M6: 3 - 5 Nm
Terminal torque	M6: 2.5 - 5 Nm
Weight	325 g
Junction temperature	-40 to +150 °C
